>>H<< Transaxle Case Oil Seal (LH) Installation

WARNING: This page is about a different variant/trim than selected.
  1. Apply the transaxle oil to the special tool MB992311.

    Insert the oil seal to the special tool MB992311.

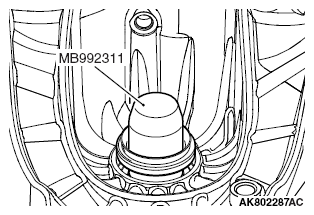

    Fig 1: Inserting Oil Seal To Special Tool MB992311
    G06471506Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Use special tool MB992310 to install the oil seal to the transaxle.

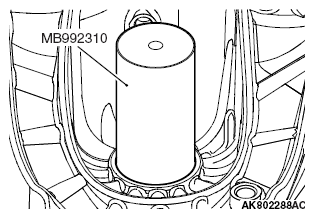

    Fig 2: Identifying Special Tool MB992310
    G06471507Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
