>>F<< Clutch Assembly Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Pay attention to the clutch assembly not to touch the seal ring and needle bearing.

Put down the clutch assembly in the vertical direction to carefully install it.

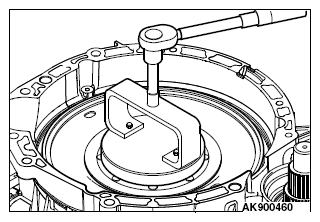

Fig 1: Installing Clutch Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Align the four pins of the special tool, clutch remover & installer (MB992332), with the four holes of the clutch assembly to set the special tool, clutch remover & installer (MB992332), to the clutch assembly.
Rotate the clutch assembly in the axial direction to insert the pins into all four clutch disks in the clutch assembly.

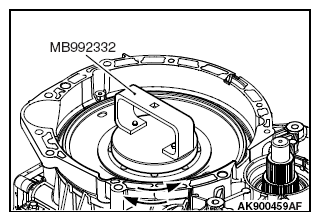

Fig 2: Identifying Clutch Remover & Installer (MB992332)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Rotate the clutch assembly clockwise to install it.
Tighten it to the specified torque.

Tightening torque: 7.5 ± 1.0 N.m (66 ± 8 in-lb)

Fig 3: Tightening Clutch Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
