Removal And Installation

WARNING: This page is about a different variant/trim than selected.
WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in AIR BAG MODULE AND CLOCK SPRING .

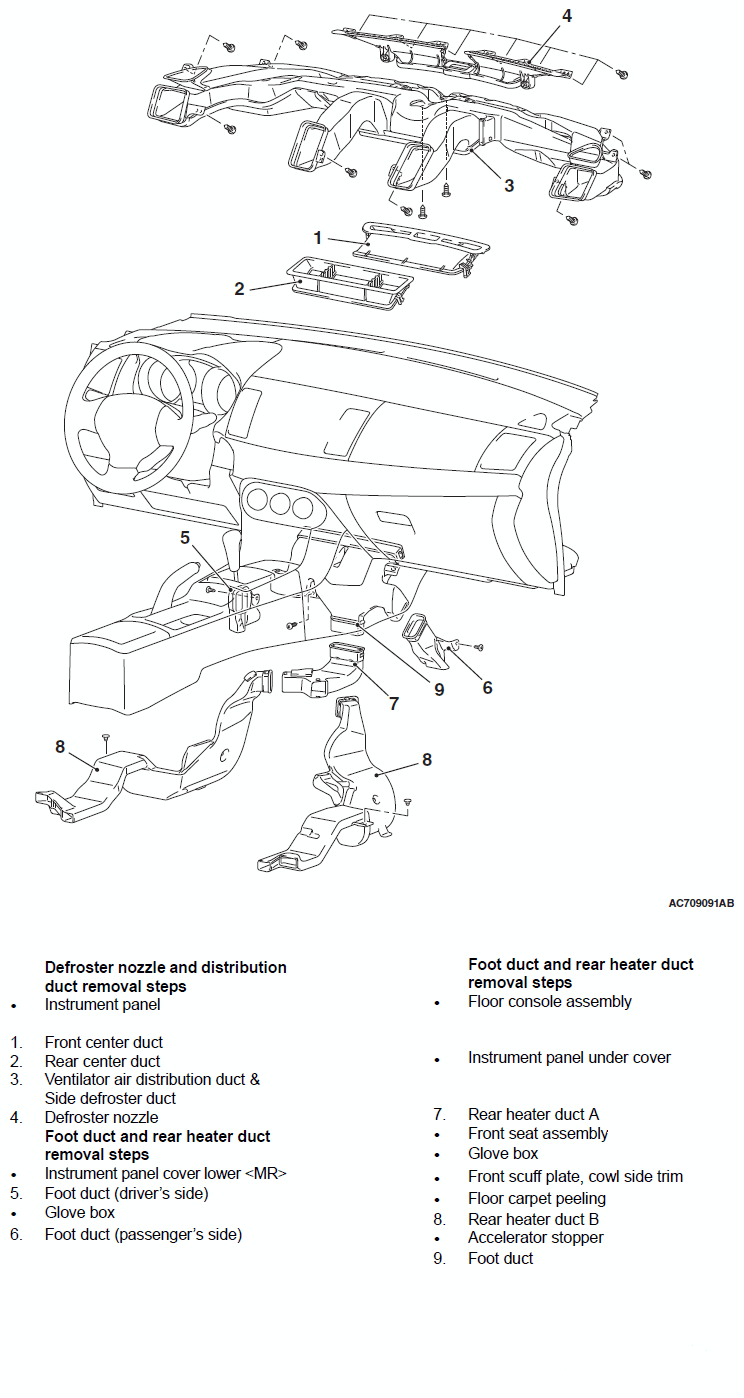

Fig 1: Identifying Instrument Panel, Glove Box, Foot Duct And Defroster Nozzle
G06679223Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
