Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

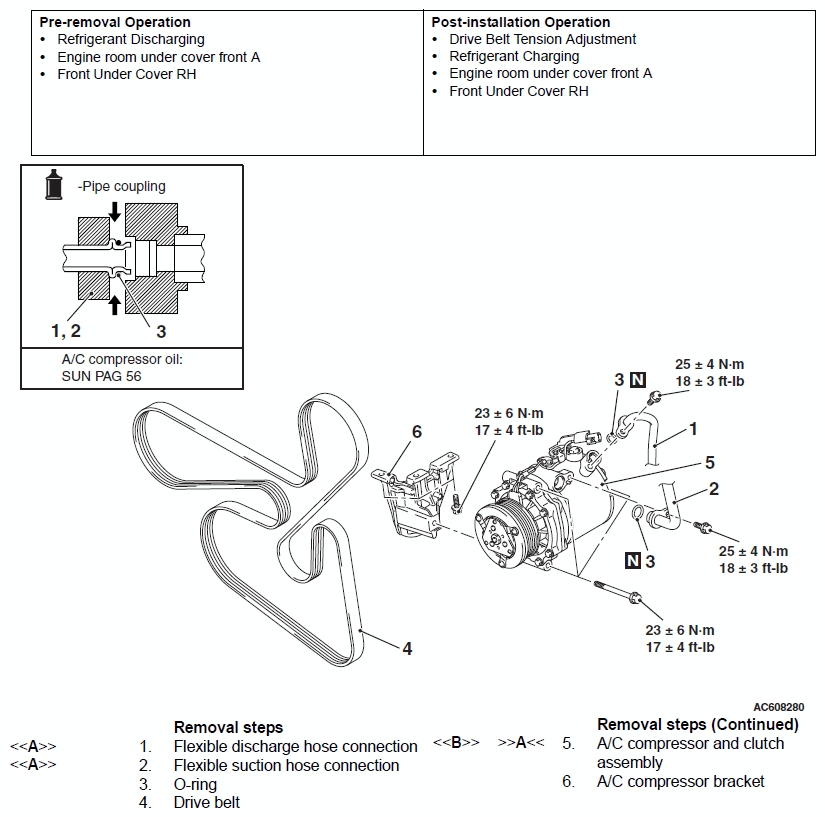

Fig 1: Compressor Assembly And Tension Pulley Replacement Components With Torque Specifications
G06679211Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
