INSPECTION PROCEDURE 8: Air Outlet Vent cannot be Changed: Notes

WARNING: This page is about a different variant/trim than selected.

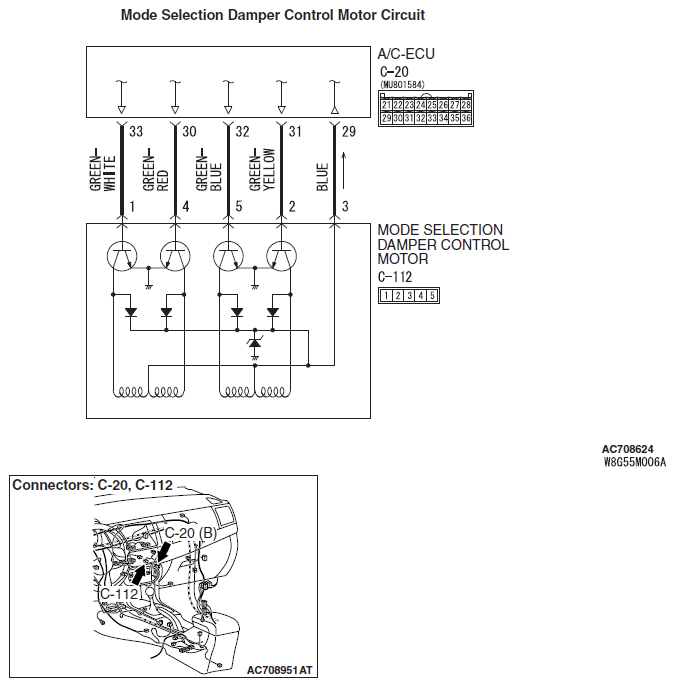

Fig 1: Mode Selection Damper Control Motor Circuit
G06679175Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
