INSPECTION PROCEDURE 5: Blower Air Amount cannot be Changed: Notes

WARNING: This page is about a different variant/trim than selected.

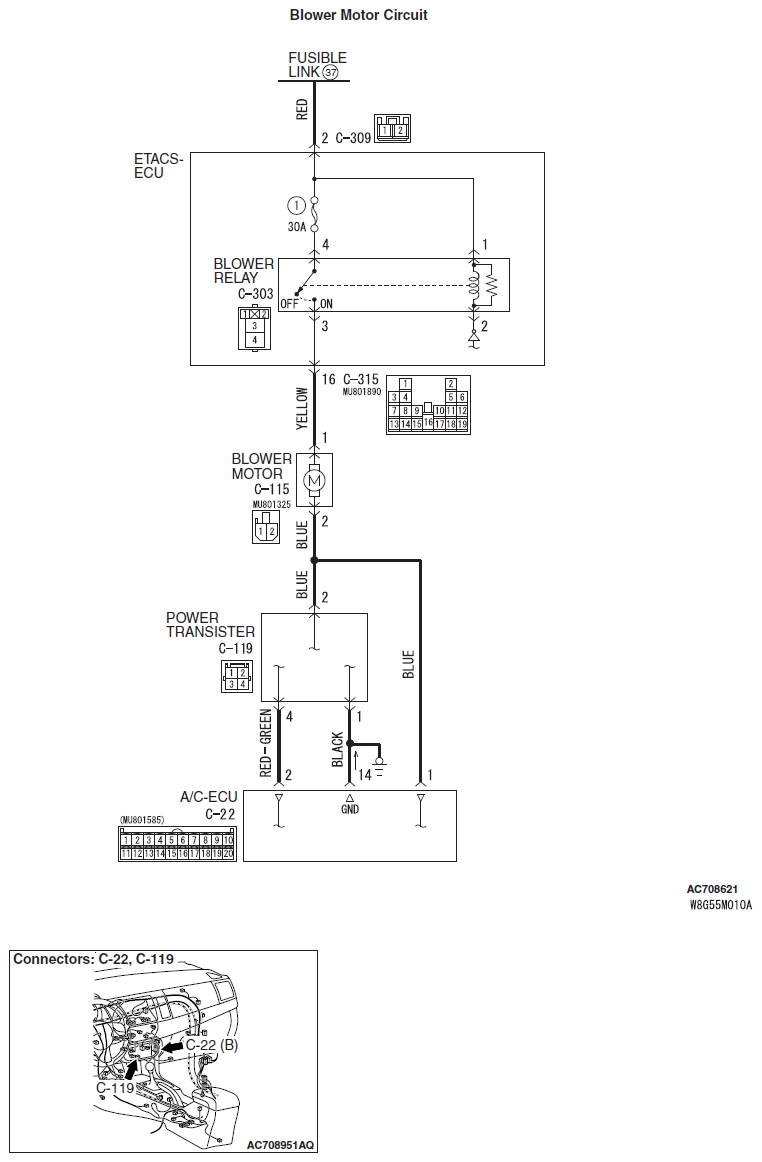

Fig 1: Blower Motor Circuit
G06679169Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
