INSPECTION PROCEDURE 2: Malfunction of the A/C-ECU Power Supply System: Notes

WARNING: This page is about a different variant/trim than selected.

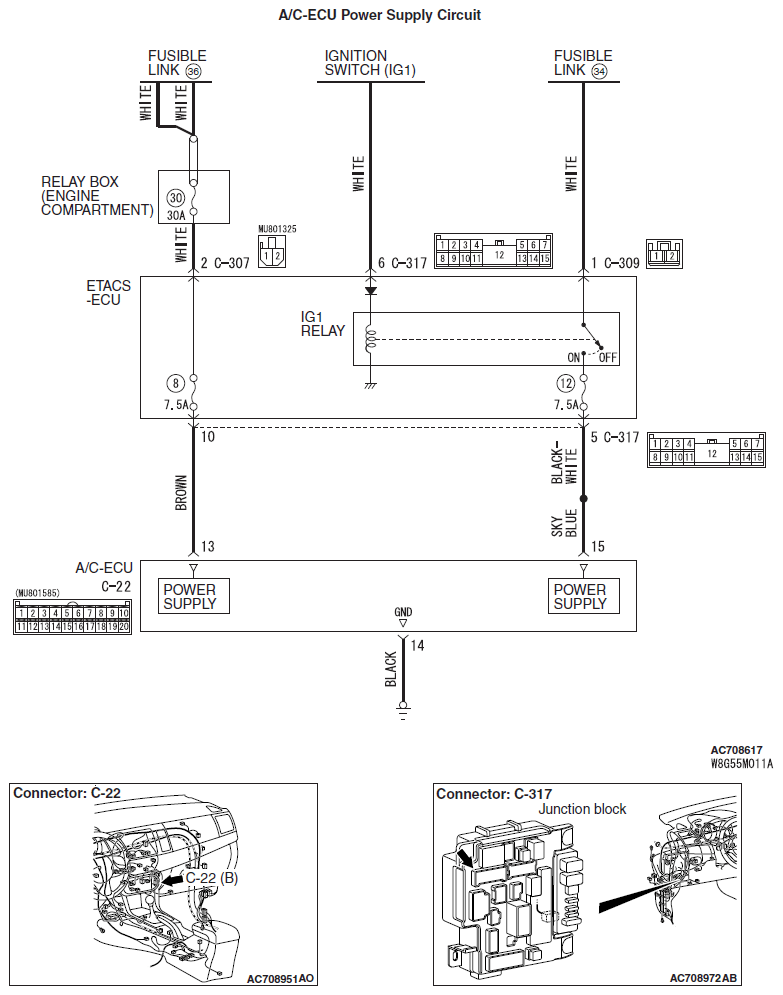

Fig 1: A/C-ECU Power Supply Circuit
G06679153Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
