DTC B1034, B1035: Ambient air temperature Sensor System: Notes

WARNING: This page is about a different variant/trim than selected.

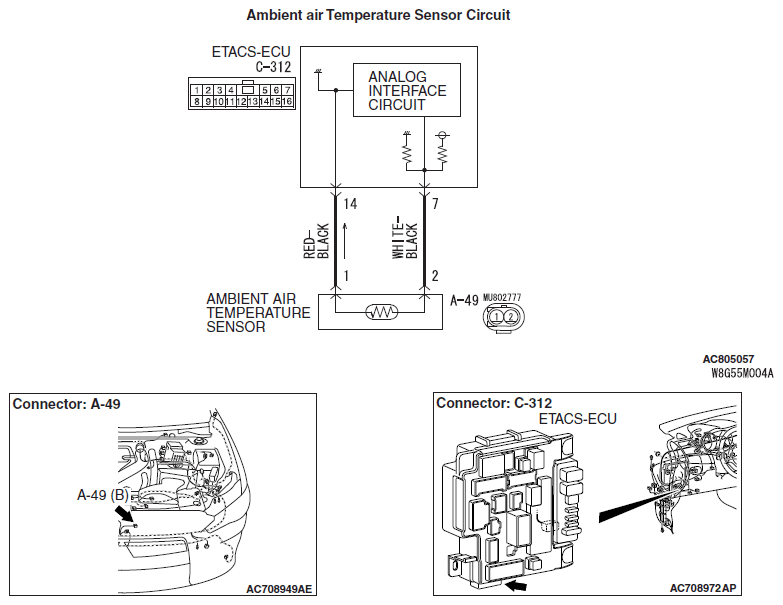

Fig 1: Ambient Air Temperature Sensor Circuit
G06679105Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
