>>B<< Clutch Interlock Switch Installation

WARNING: This page is about a different variant/trim than selected.

Install the clutch interlock switch according to the dimension shown in the illustration.

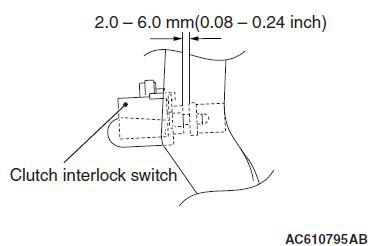

Fig 1: Identifying Clutch Interlock Switch
G05375560Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
