Section 30 (Battery -- Lancer Evolution)
>>
Removal And Installation
>>
Eng Control Harness Connector Bracket
Eng Control Harness Connector Bracket
WARNING:
This page is about a different variant/trim than selected.

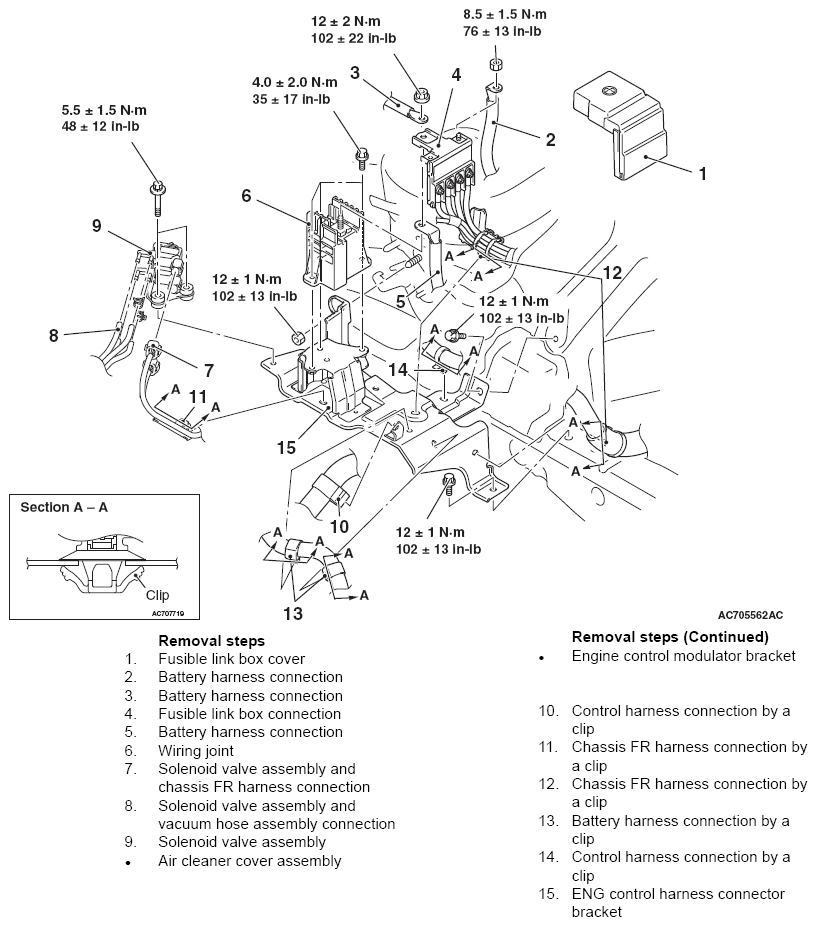

Fig 1: ENG Control Harness Connector Bracket Replacement Components With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
