Removal And Installation

WARNING: This page is about a different variant/trim than selected.

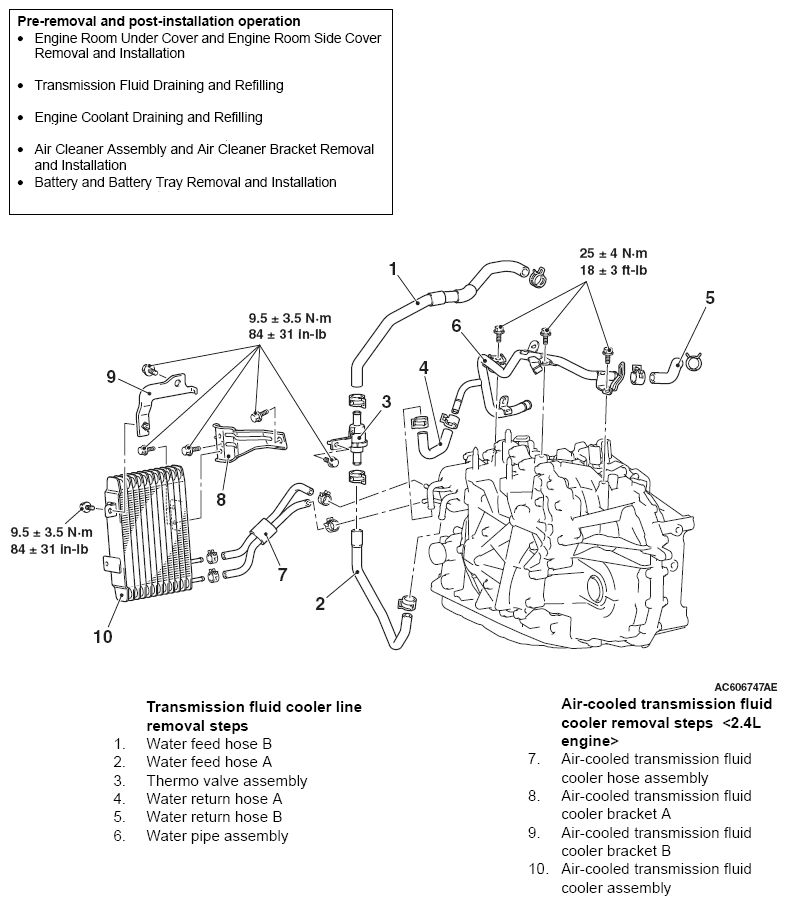

Fig 1: Transmission Fluid Cooler And Cooler Line Replacement Components With Torque Specifications
G06665823Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
