Diagnosis Procedure
WARNING: This page is about a different variant/trim than selected.
- STEP 1. M.U.T.-III special function
Check the deterioration level of the transmission fluid.
NOTE: The transmission fluid deterioration level is the accumulation of the values counted depending on the fluid temperature of a certain period of time, and it shows the thermal deterioration level of the transmission fluid.Q: Is the deterioration level of the transmission fluid less than 210,000?
- YES: Go to Step 2.
- NO: Replace the transmission Fluid.
- STEP 2. M.U.T.-III data list
Item 5: Transmission fluid temperature sensor (Refer to DATA LIST REFERENCE TABLE .)
Q: Is the check result normal?
- YES: Go to Step 3.
- NO: Diagnosis code No.P0712, P0713: Diagnose the transmission fluid temperature sensor DTC P0710: MALFUNCTION OF TRANSMISSION FLUID TEMPERATURE SENSOR; DTC P0712*: MALFUNCTION OF TRANSMISSION FLUID TEMPERATURE SENSOR (SHORT); DTC P0713*: MALFUNCTION OF TRANSMISSION FLUID TEMPERATURE SENSOR (OPEN) .
- STEP 3. Air-cooled transmission fluid cooler system clogging check <2.4 L engine>
Check if the air-cooled transmission fluid cooler system is clogged according to the following procedure.
CAUTION: Do not reuse the drained transmission fluid.- Remove the transmission fluid cooler hose assembly.
- Blow air into the transmission fluid cooler hose assembly, and check that the air comes out from the opposite side.
- Blow air into the air-cooled transmission fluid cooler (A in the figure), and check that the air comes out from the opposite side (B in the figure).
- Install the parts, and replenish the transmission fluid to the specified quantity.
Q: Is the check result normal?
- YES: Go to Step 4.
- NO: Replace the part(s) having damage or other problems.
- STEP 4. Thermo valve check
Refer to THERMO VALVE CHECK .
Q: Is the check result normal?
- YES: Go to Step 5.
- NO: Replace the thermo valve.
- STEP 5. Coolant system clogging check
Check if the coolant system is clogged according to the following procedure.
CAUTION: Do not reuse the drained coolant.- Drain the coolant.
- Remove water feed hose A, water feed hose B and water return hose A.
- Blow air into the removed parts, and check that the air comes out from the opposite side.

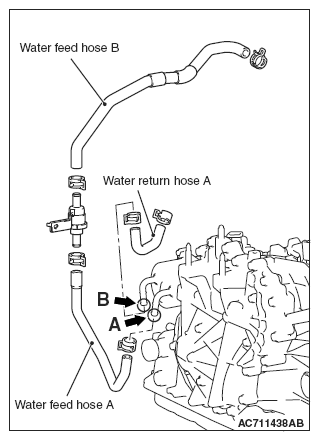

- Blow air into the coolant outlet (A in the figure), and check that the air comes out from the opposite side (B in the figure).
- Install the parts, and replenish the coolant to the specified quantity.
Q: Is the check result normal?
- YES: Go to Step 6.
- NO: Replace the part(s) having damage or other problems.
- STEP 6. Retest the system.
Q: Does a malfunction take place again?
- YES: Replace the CVT assembly.
- NO: Intermittent malfunction
