DTC P0715: Malfunction of Primary Pulley Speed Sensor: Notes

WARNING: This page is about a different variant/trim than selected.

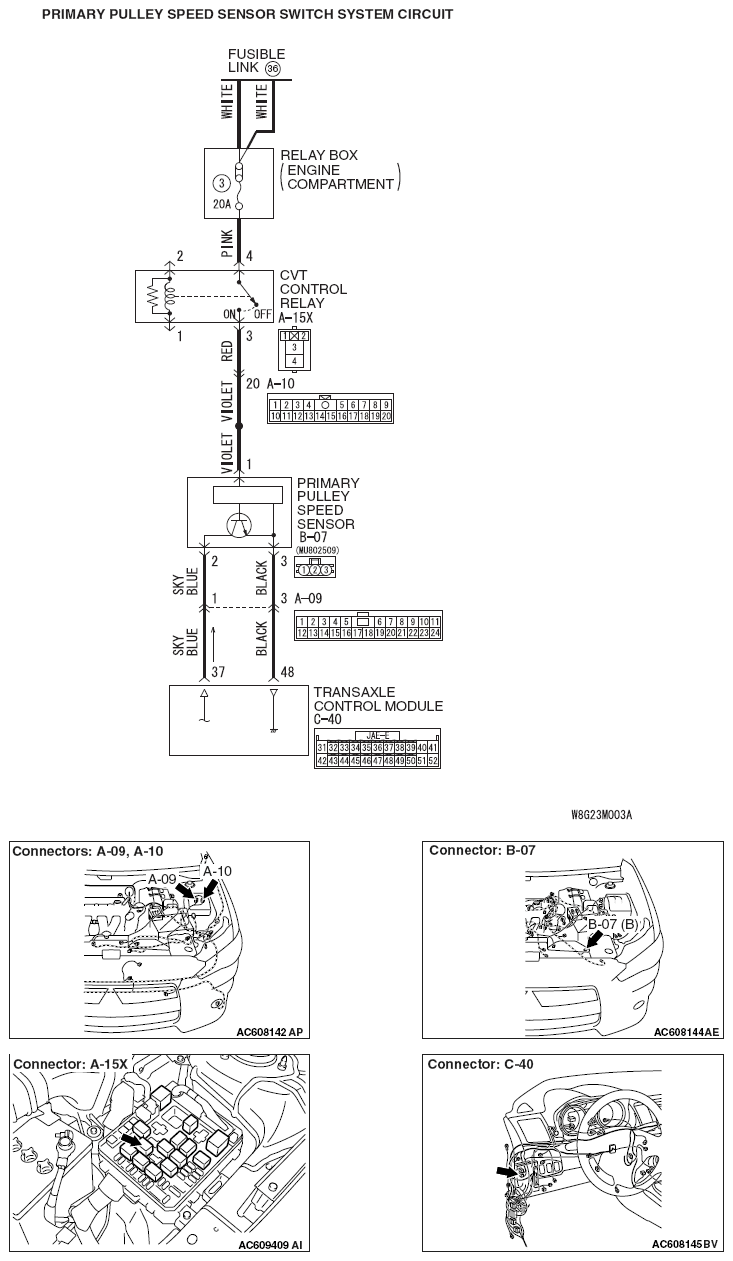

Fig 1: Primary Pulley Speed Sensor Switch Circuit Diagram
G06665734Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
