Disassembly And Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

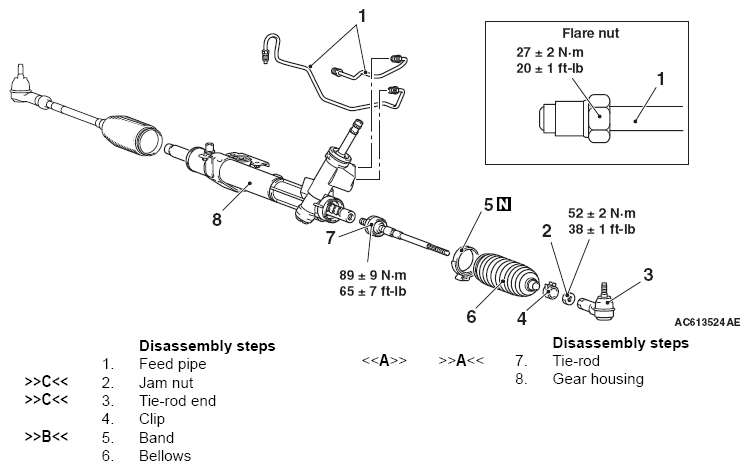

Fig 1: Disassembly And Assembly Of Power Steering Gear Box And Linkage With Torque Specifications
G06677785Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
