DTC B1201: Abnormal fuel information: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Whenever the ECU is replaced, ensure that the communication circuit is normal.

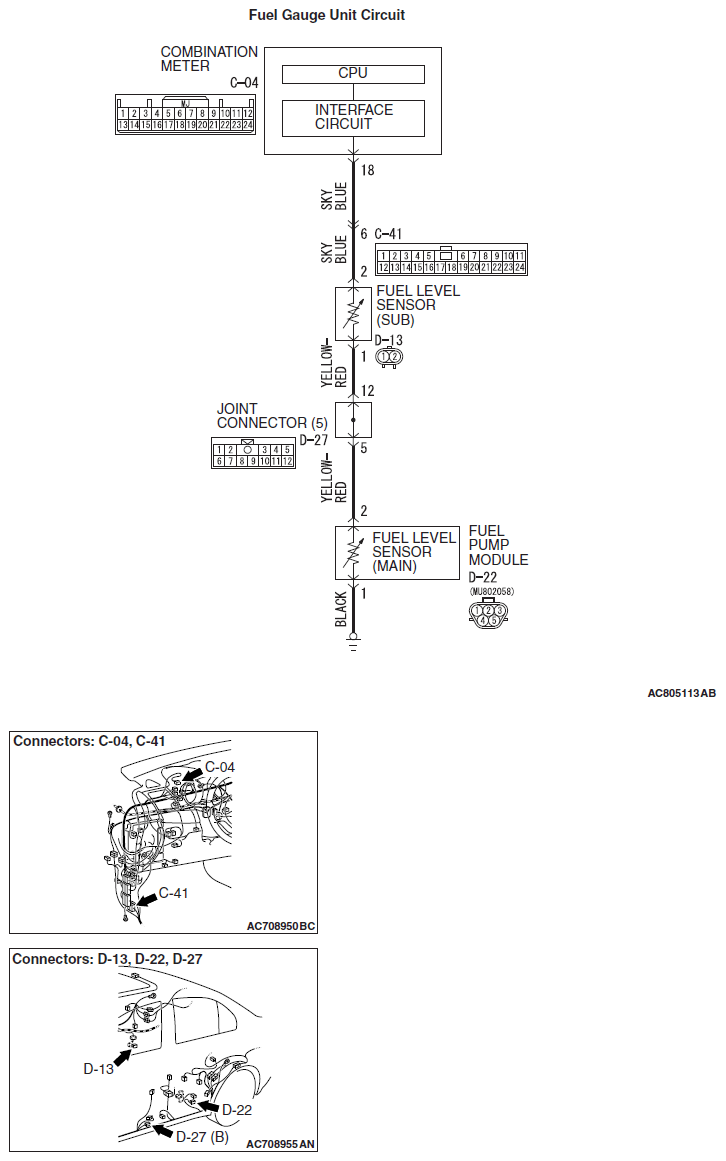

Fig 1: Fuel Gauge Unit Circuit Diagram
G06678035Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
