Removal And Installation

WARNING: This page is about a different variant/trim than selected.

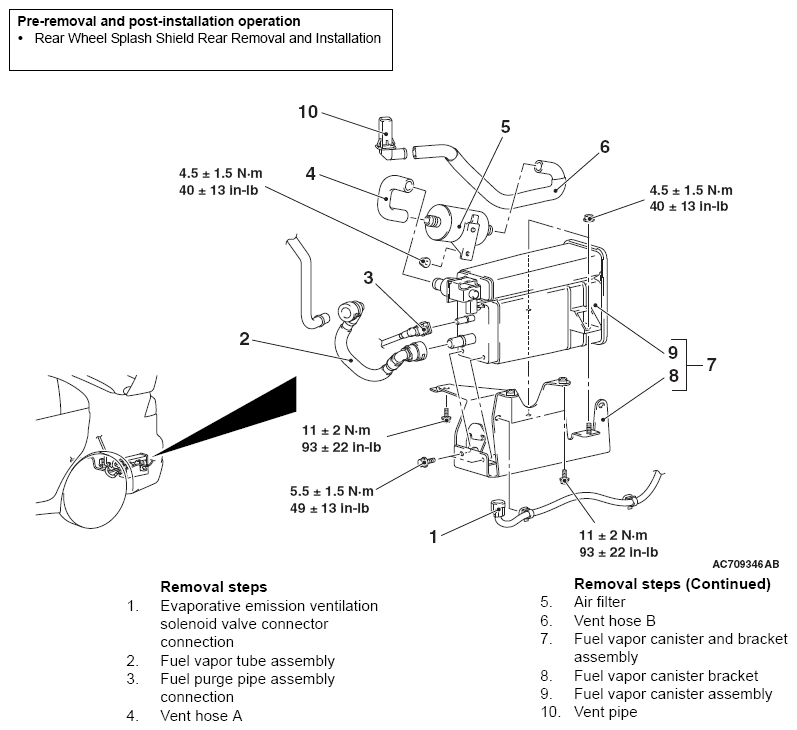

Fig 1: Fuel Vapor Canister Assembly With Torque Specifications
G06676827Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
