Inspection Procedure 2: With the parking brake released, the brake warning light remains illuminated (ABS warning light is turned off): Notes

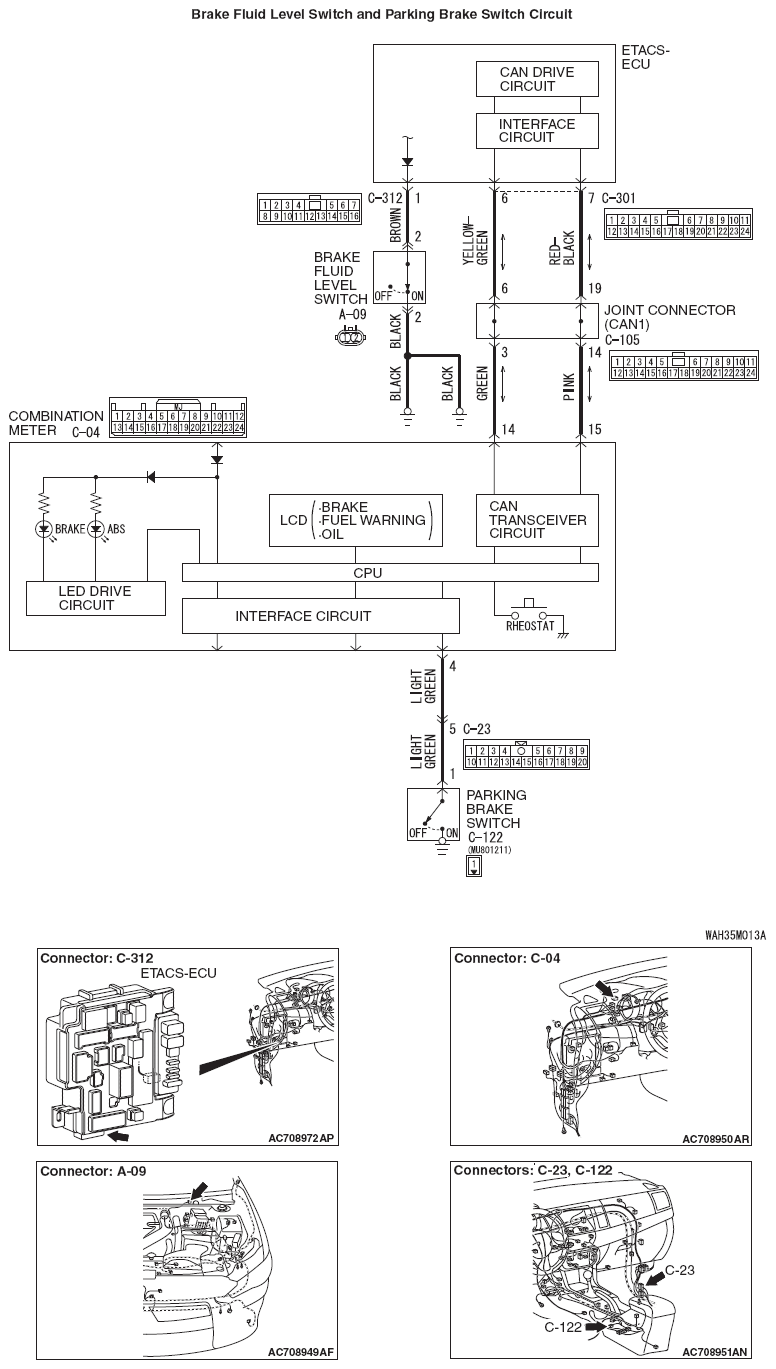

Fig 1: Brake Fluid Level Switch And Parking Brake Switch Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION:

• If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
• Whenever the ECU is replaced, ensure that the communication circuit is normal.
