< Vacuum Hose And Vacuum Pipe>

WARNING: This page is about a different variant/trim than selected.

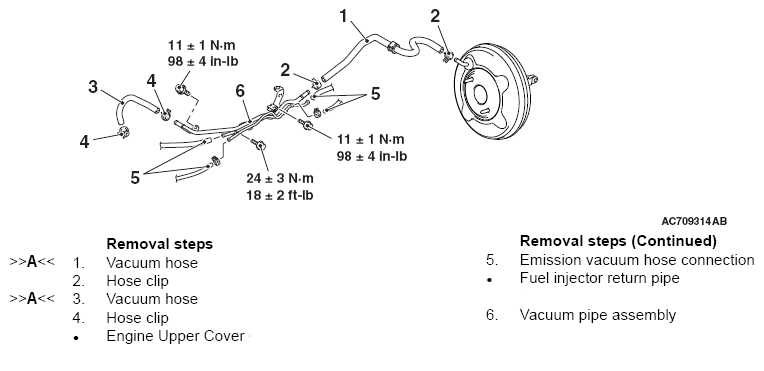

Fig 1: Removal And Installation Of Vacuum Hose And Vacuum Pipe With Torque Specifications
G06677680Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
