Removal And Installation

WARNING: This page is about a different variant/trim than selected.

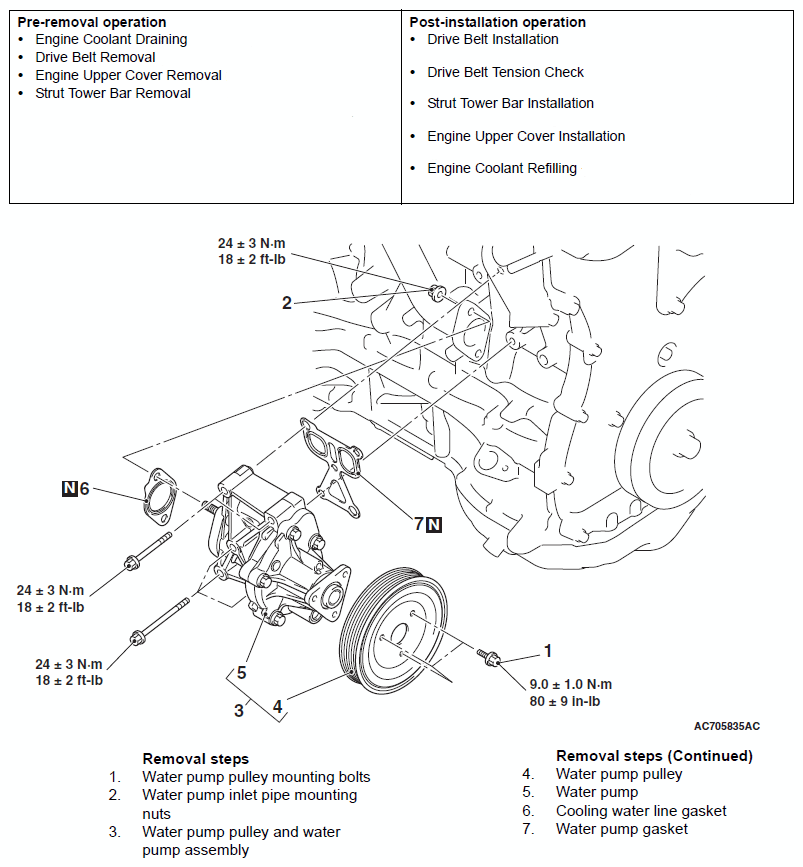

Fig 1: Water Pump Replacement Components With Torque Specifications
G06675139Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
