Inspection Procedure 3: Radiator Fan and Condenser Fan do not Operate: Notes

WARNING: This page is about a different variant/trim than selected.

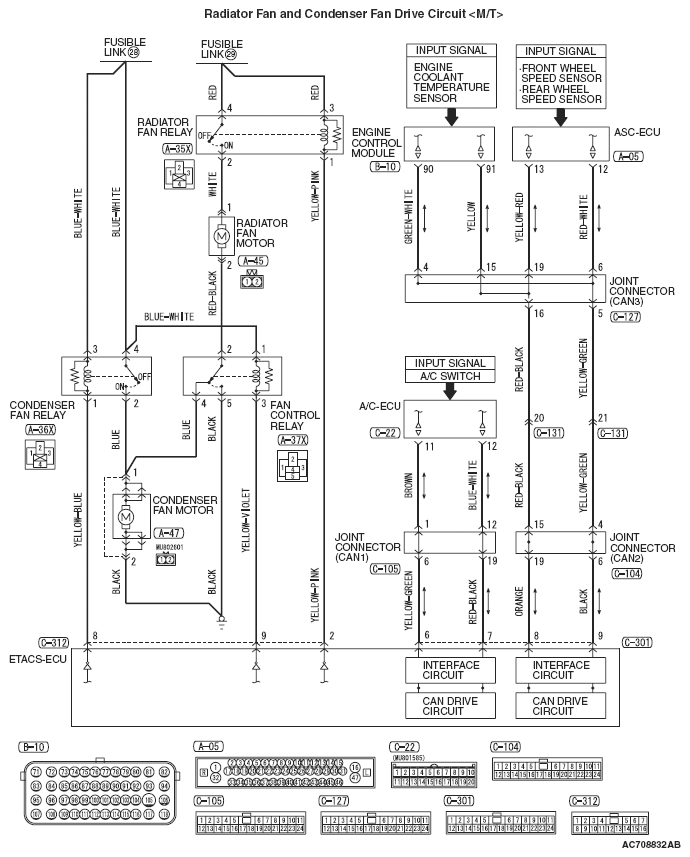

Fig 1: Radiator Fan And Condenser Fan Drive Circuit Diagram - M/T
G05393606Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

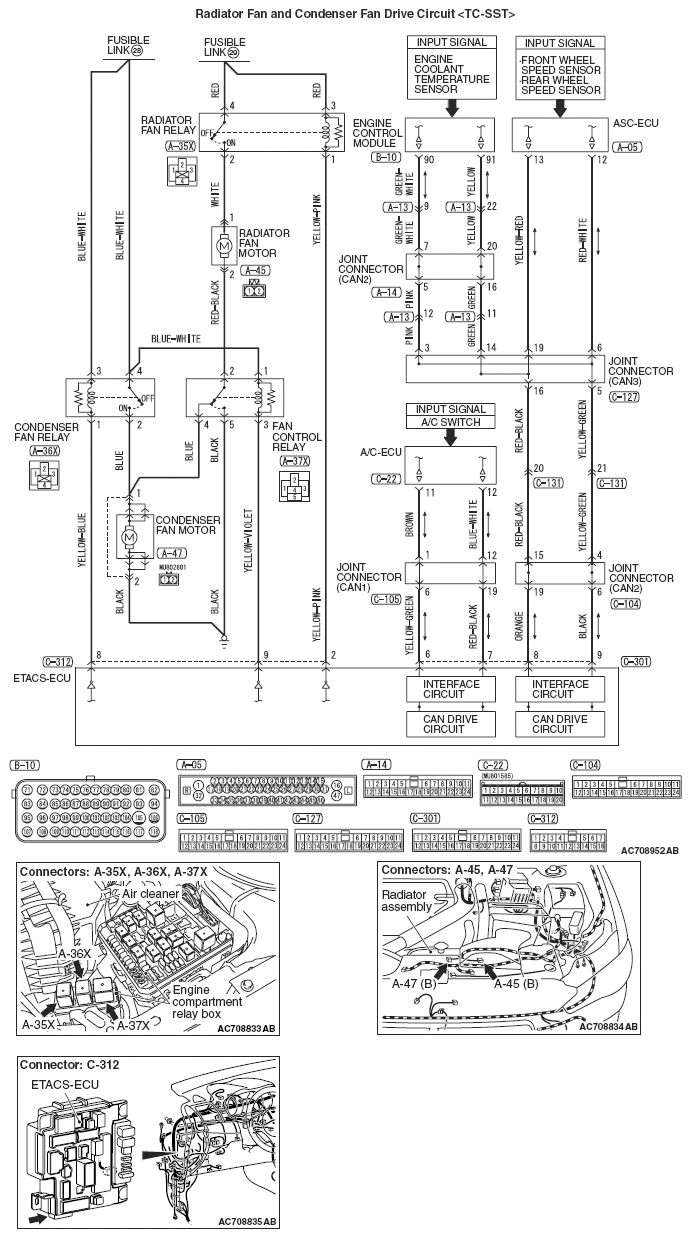

Fig 2: Radiator Fan And Condenser Fan Drive Circuit Diagram - TC-SST
G05393607Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
