Clip Position

WARNING: This page is about a different variant/trim than selected.

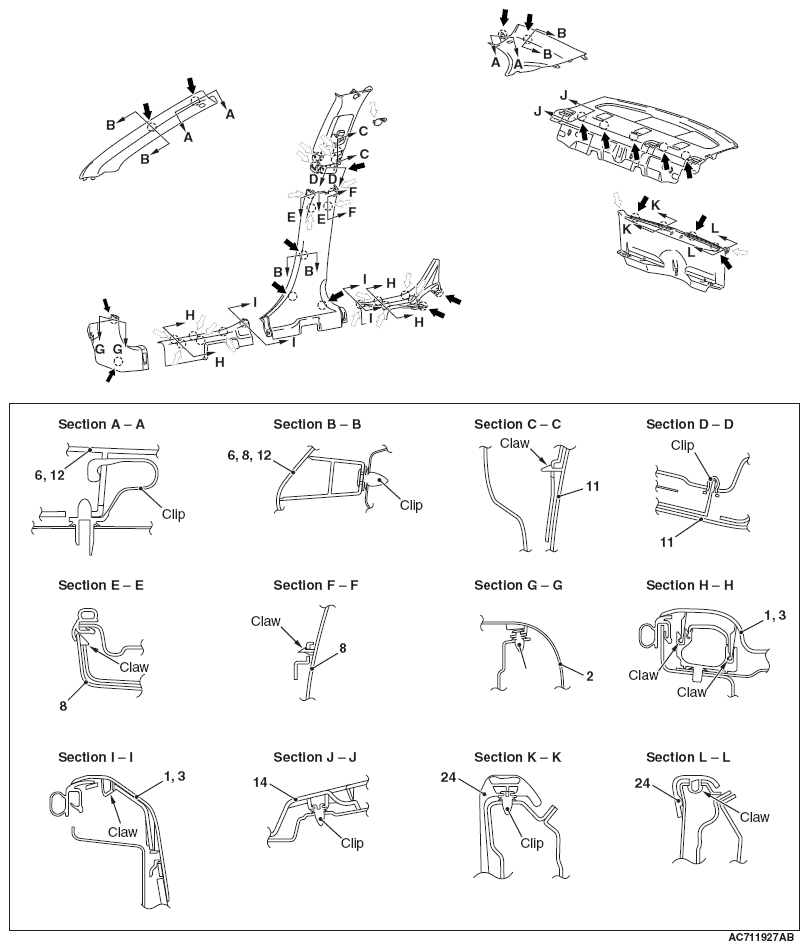

Fig 1: Identifying Removal And Installation Of Clip Position
G06677981Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Each number in the illustration indicates a part number.
