Removal And Installation

WARNING: This page is about a different variant/trim than selected.

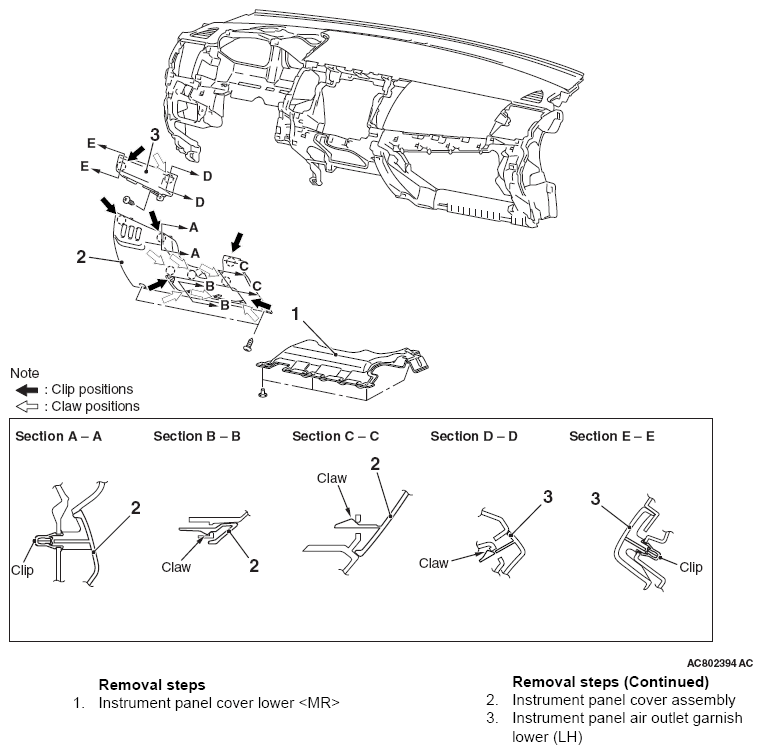

Fig 1: Identifying Removal And Installation Of Instrument Lower Panel
G06677975Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
