Removal And Installation

WARNING: This page is about a different variant/trim than selected.

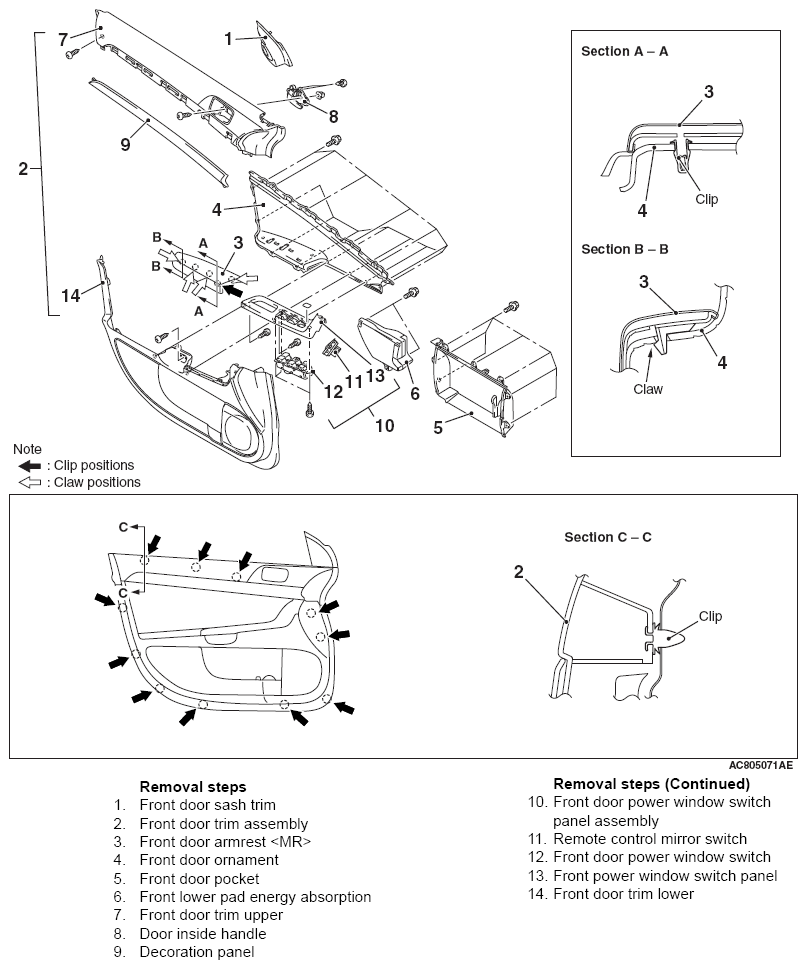

Fig 1: Identifying Removal And Installation Of Front Door Trim
G06677984Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

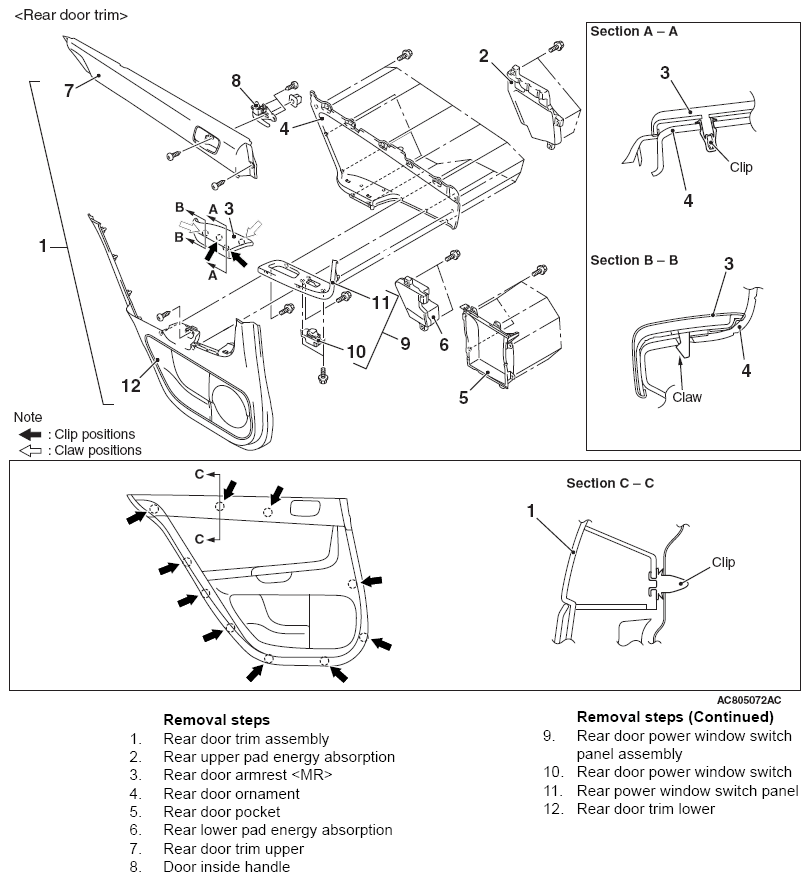

Fig 2: Identifying Removal And Installation Of Rear Door Trim
G06677985Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
