Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: *Remove and assemble the marked parts in each cylinder unit.

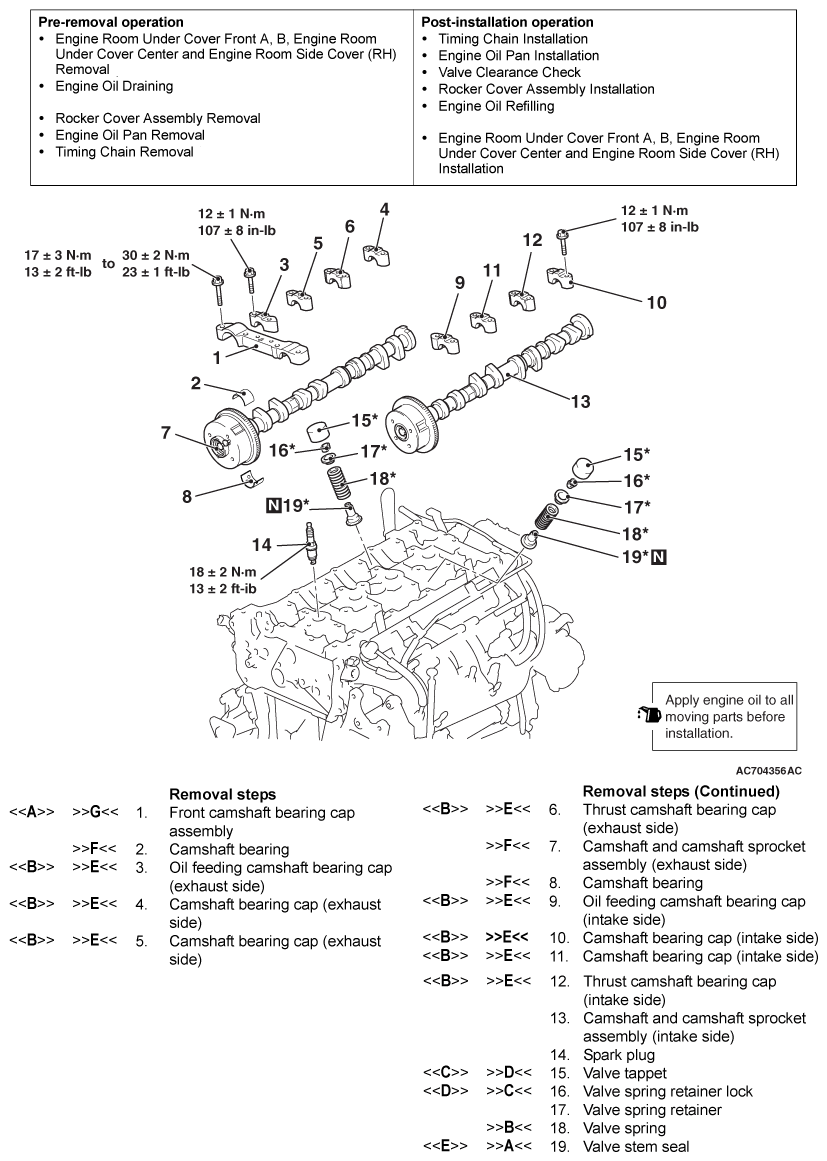

Fig 1: Valve Stem Seal Replacement Components With Torque Specifications
G06674013Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
