>>A<< Cylinder Head Gasket/Cylinder Head Assembly Installation
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Do not allow any foreign materials get into the coolant passages, oil passages and cylinder.
- Remove the sealant and grease on the top surface of cylinder block and on the bottom surface of the cylinder head. Then, degrease the sealant application surface.

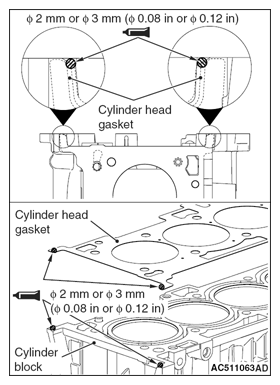

- Apply the sealant to the top surface of cylinder block as shown in the illustration.
Specified sealant: Three bond 1217G or equivalent
- Install the cylinder head gasket to the cylinder block.NOTE:
- Install the cylinder head gasket immediately after applying sealant.
- When the cylinder gasket is installed to the cylinder block, check that the sealant is securely applied to the bead line of the cylinder head gasket.
- Apply the sealant to the top surface of cylinder head gasket as shown in the illustration.
Specified sealant: Three bond 1217G or equivalent
CAUTION: After the installation, until a sufficient period of time (one hour or more) elapses, do not apply the oil or water to the sealant application area or start the engine. - Within three minutes after the sealant application, install the cylinder head assembly.
