>>A<< Crankshaft Rear Oil Seal Case Assembly Installation
WARNING: This page is about a different variant/trim than selected.
- Remove all the traces of sealant adhering to the cylinder block and ladder frame using a remover or others. Then, degrease them using.

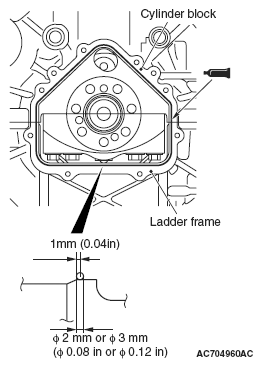

- Apply the sealant without any gap to the cylinder block and ladder frame as shown in the illustration, and install the crankshaft rear oil seal case assembly.
Specified sealant: Three bond 1227D or equivalent
NOTE: Install the crankshaft rear oil seal case assembly immediately after applying sealant. - Apply a small amount of engine oil to the entire inner diameter of the oil seal lip, and install the crankshaft rear oil seal case assembly.CAUTION: After the installation, until a sufficient period of time (one hour or more) elapses, do not apply the oil or water to the sealant application area or start the engine.
- Tighten the crankshaft rear oil seal case assembly mounting bolts to the specified torque.
Tightening torque: 10 ± 2 N.m (89 ± 17 in-lb)
