Malfunction of ETACS-ECU power supply circuit: Notes

WARNING: This page is about a different variant/trim than selected.

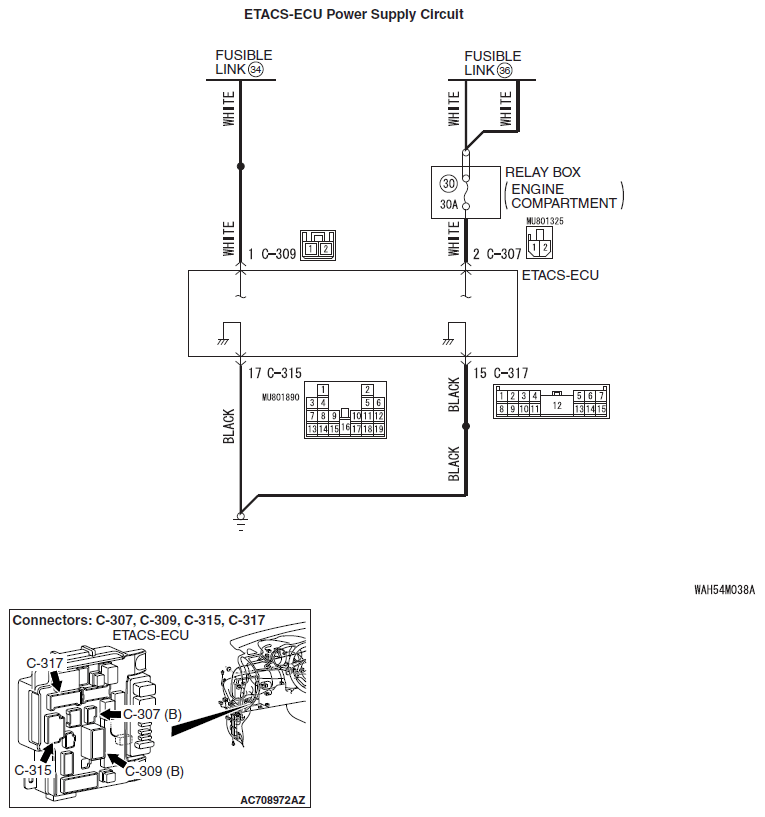

Fig 1: ETACS-ECU Power Supply Circuit Diagram
G06678512Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
