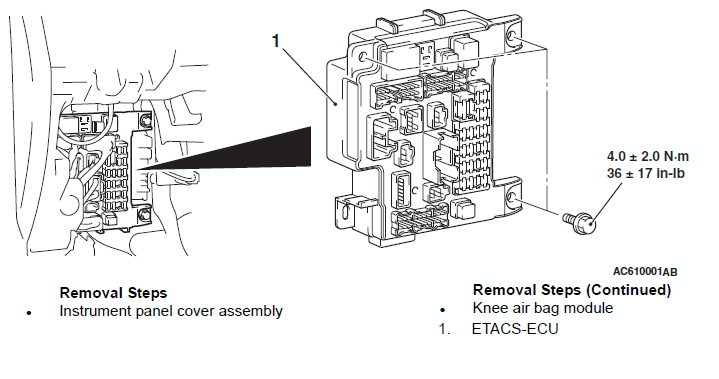

Removal And Installation
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Before removing the ETACS-ECU and knee air bag module, refer to SERVICE PRECAUTIONS and KNEE AIR BAG MODULE .
- When removing and installing the ETACS-ECU, do not let it bump against the knee air bag module.
CAUTION:
When the ETACS-ECU is replaced, chassis number writing and coding must be performed. When diagnostic trouble code No.B1761 "Chassis No. not programmed" or No.B222C "Coding not completed" is set to the ETACS-ECU, perform chassis number writing and coding. Refer to the M.U.T.-III Owner's Manual and perform coding.
