Inspection Procedure 4: Abnormality in WCM power supply and ground circuits: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

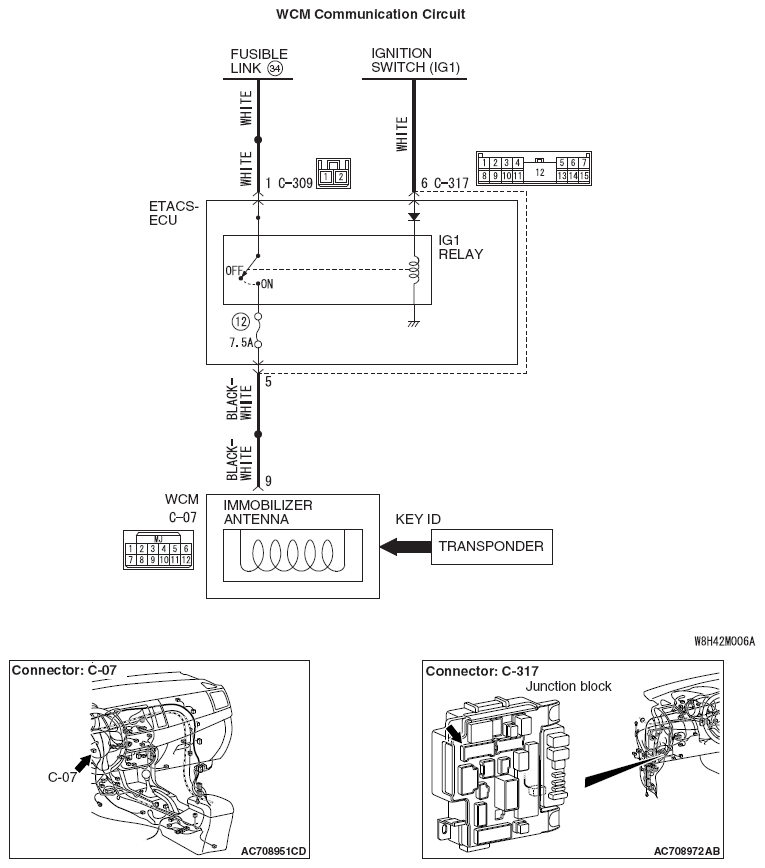

Fig 1: WCM Communication Circuit
G06675767Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
