Inspection Procedure 5: IG knob will not turn (keyless operation is not recognized): Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.

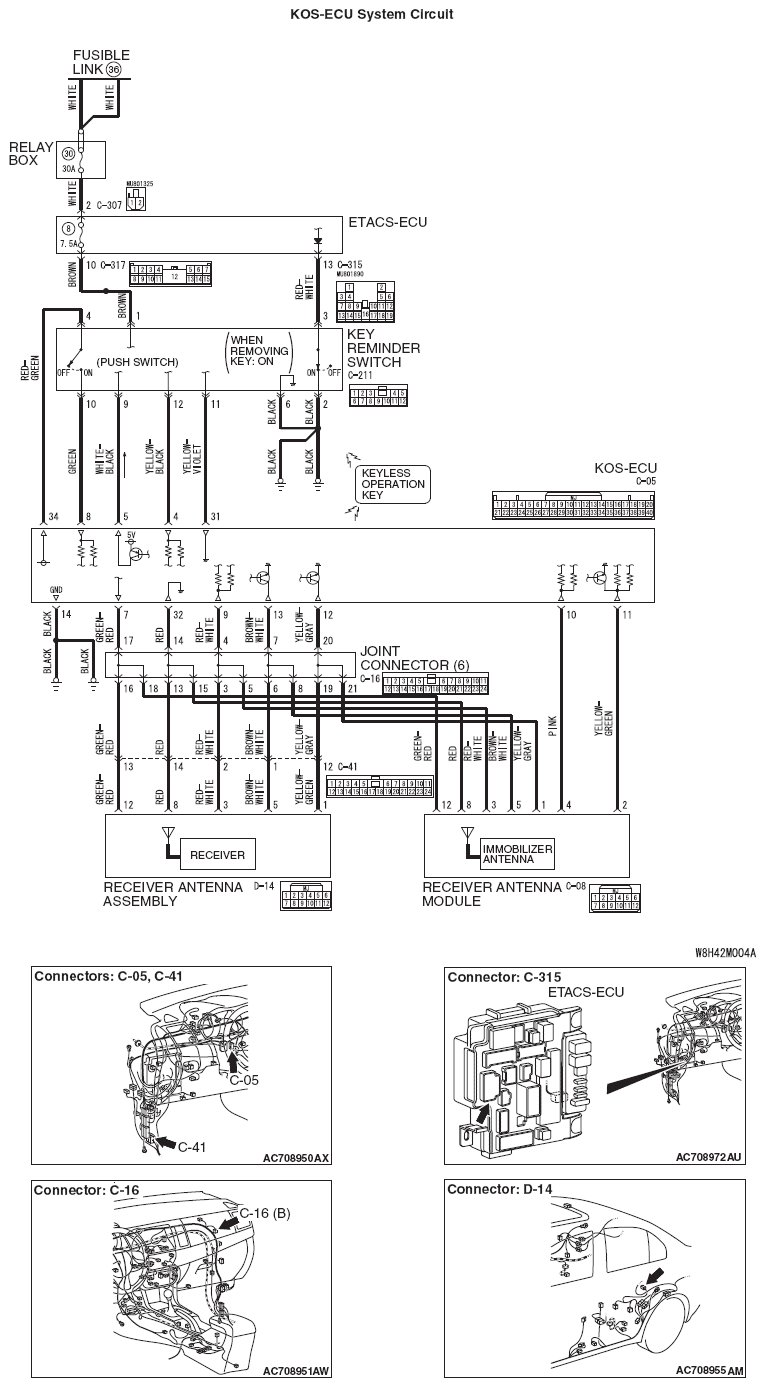

Fig 1: KOS-ECU System Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
