Inspection Procedure 13: Trunk lid opener switch does not work: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

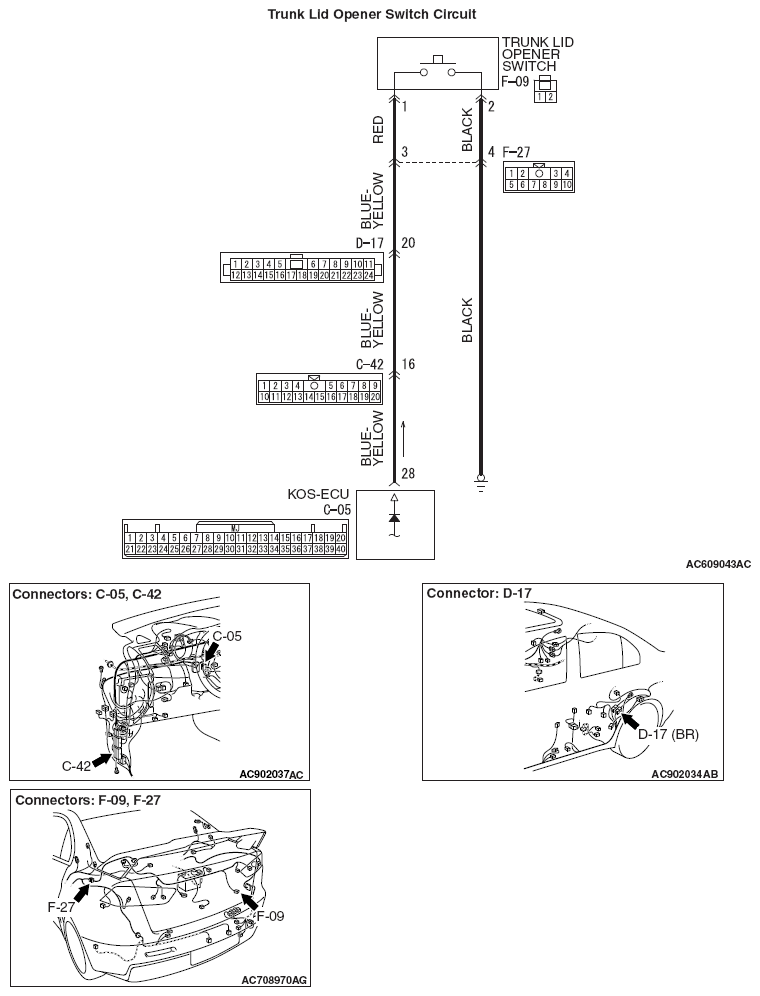

Fig 1: Trunk Lid Opener Switch Circuit
G06675689Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
