Inspection Procedure 12: Front passenger's door unlock sensor does not work: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

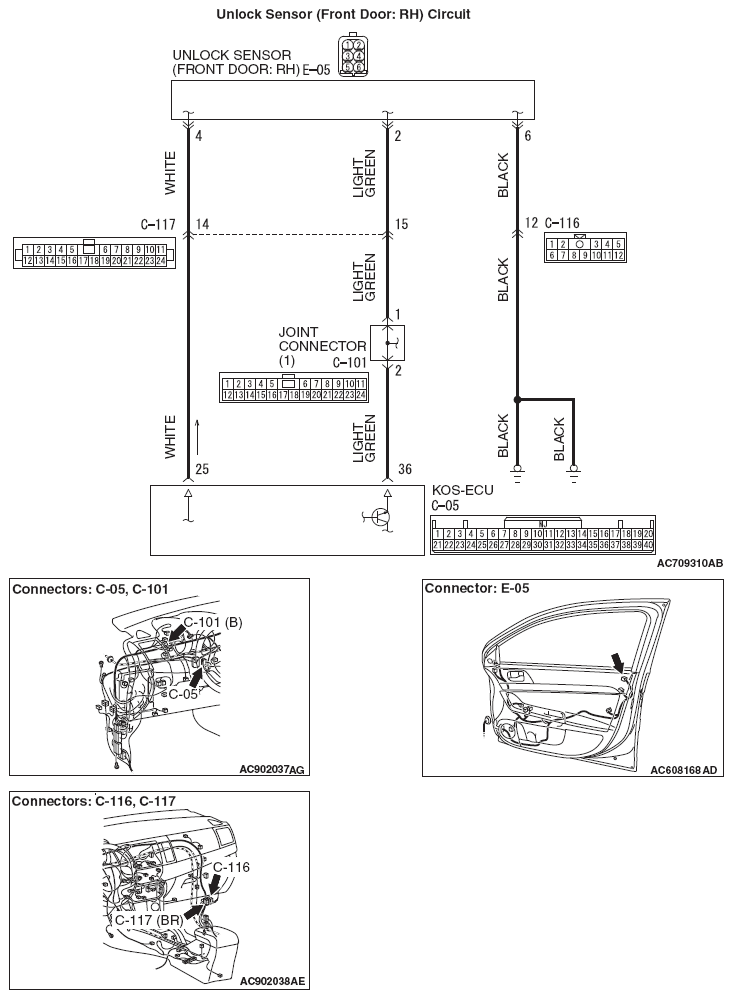

Fig 1: Unlock Sensor Circuit (Front Door RH)
G06675687Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
