DTC B240D: Front antenna(indoor) open: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION: When replacing the ECU, always check that the communication circuit is normal.

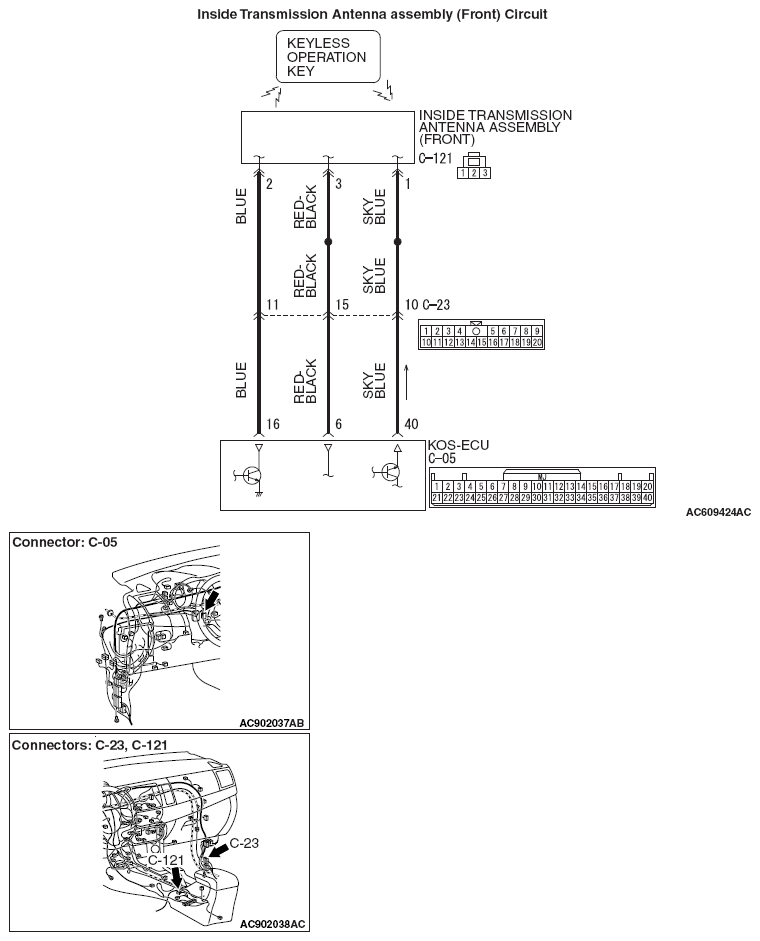

Fig 1: Inside Transmission Antenna Assembly (Front) Circuit
G06675576Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
