DTC B2400: KOS key registration fail: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • If DTC B2400 is set, diagnose the CAN bus lines.
  • When replacing the ECU, always check that the communication circuit is normal.

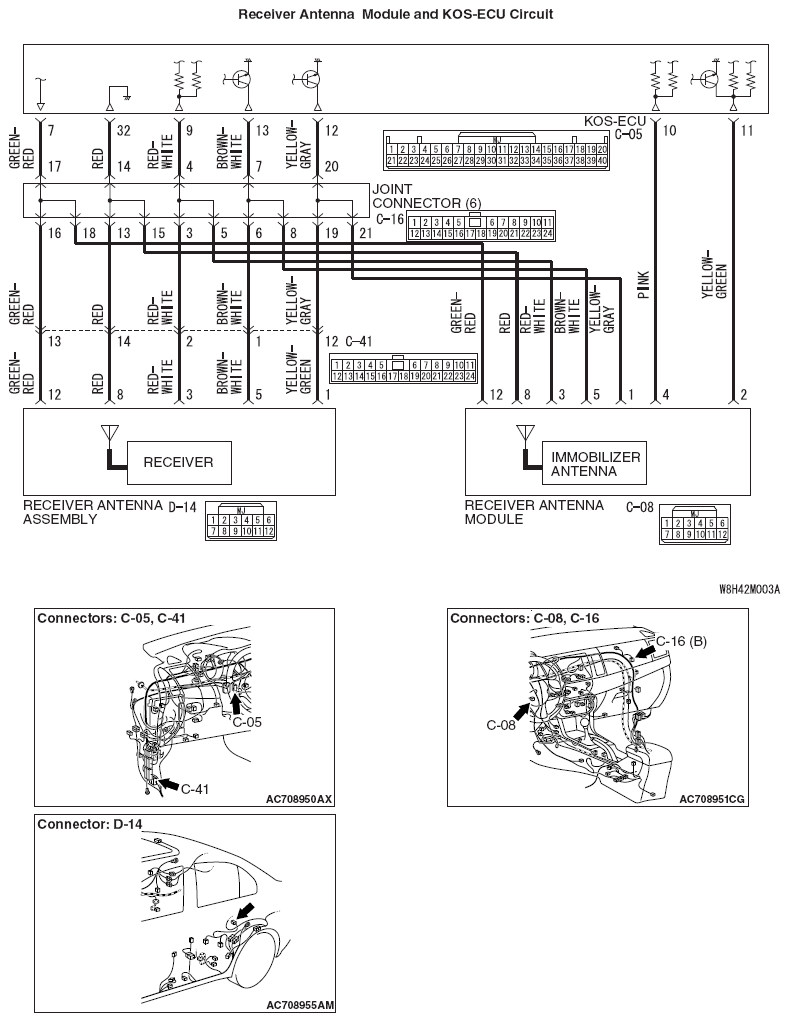

    Fig 1: Receiver Antenna Module And KOS-ECU Circuit
    G06675538Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
