Inspection procedure 3: The SRS Warning Light does not Illuminate: Notes

WARNING: This page is about a different variant/trim than selected.

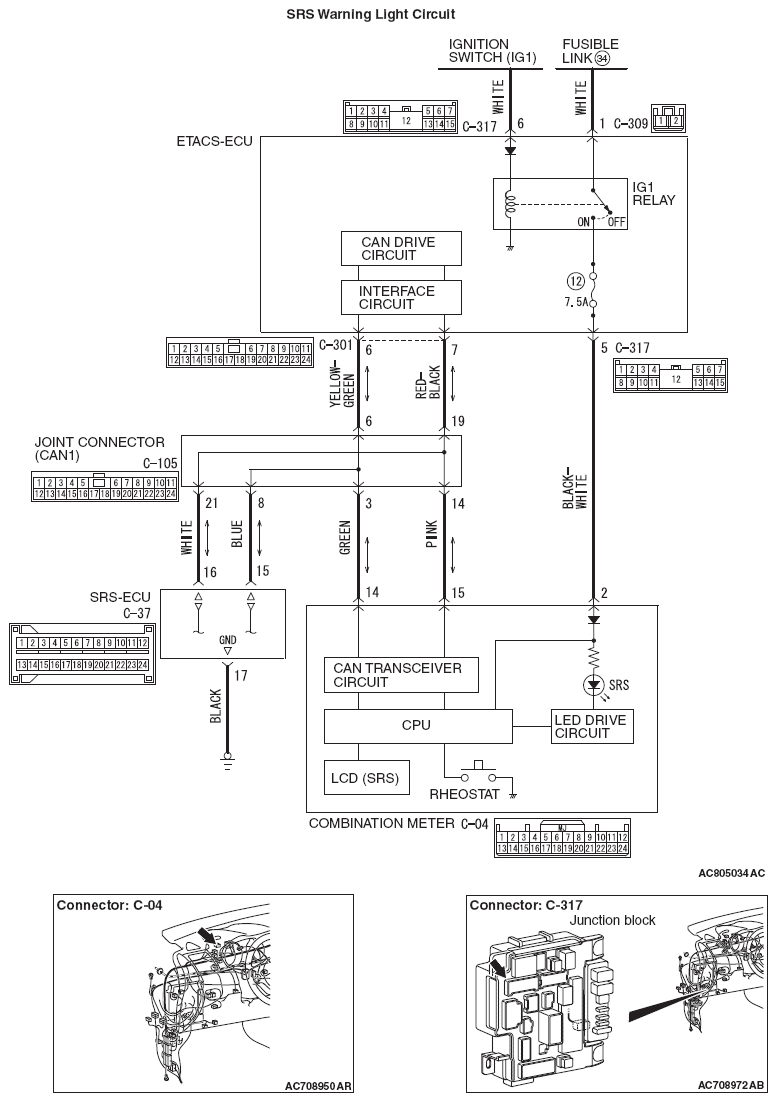

Fig 1: SRS Warning Light Circuit Diagram
G06676371Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
