Component Location

WARNING: This page is about a different variant/trim than selected.

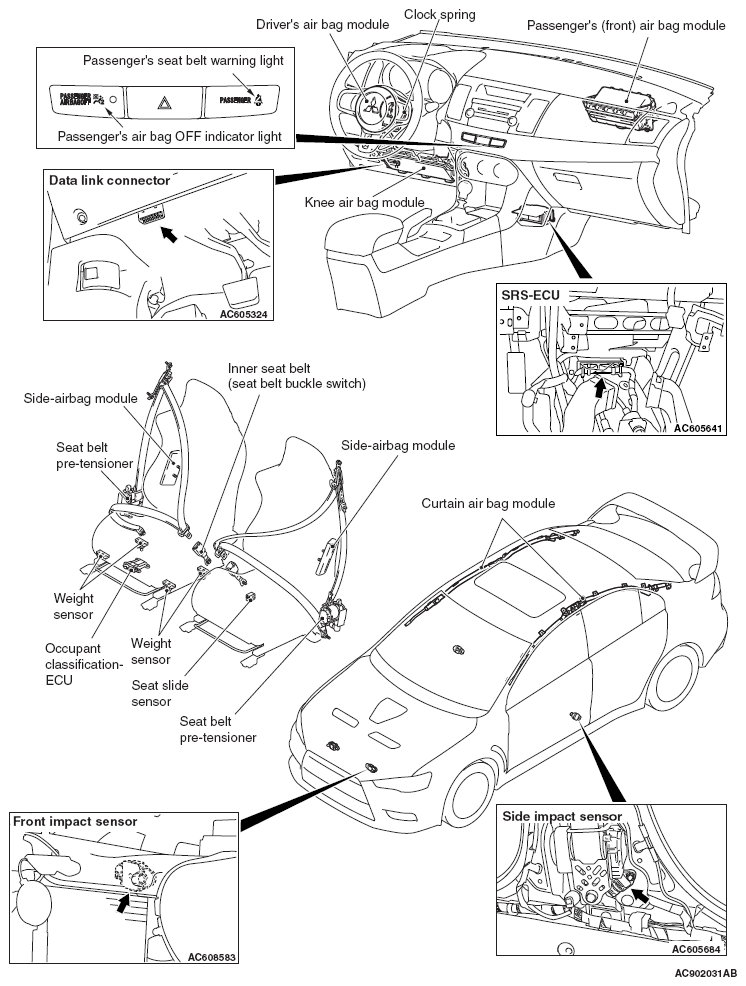

Fig 1: Identifying Supplemental Restraint System Component Location
G06675884Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: The illustration above shows the front impact sensor (LH) and the side impact sensor (LH). The position of the front impact sensor (RH) and the side impact sensor (RH) is symmetrical to this.
