Inspection Procedure 3: No Sound Is Heard From One Of The Speakers: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before replacing the multivision display and audio amplifier, ensure that the power supply circuit, the ground circuit, and the communication circuit are normal. (Check that the voltage is 10 V or more.)

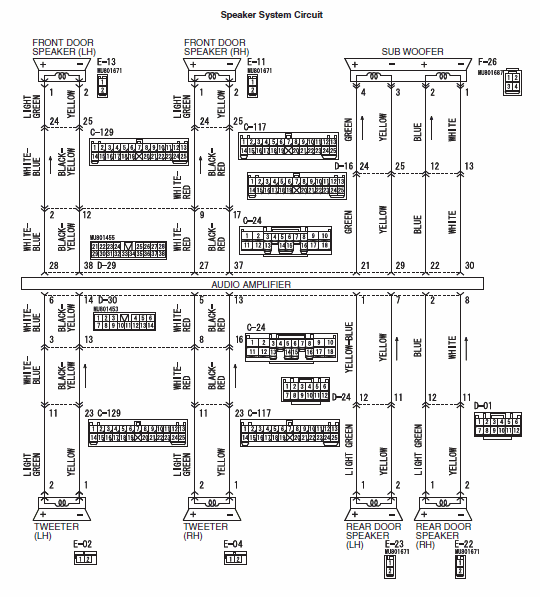

Fig 1: Speaker System Circuit Diagram (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Speaker System Circuit Diagram (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

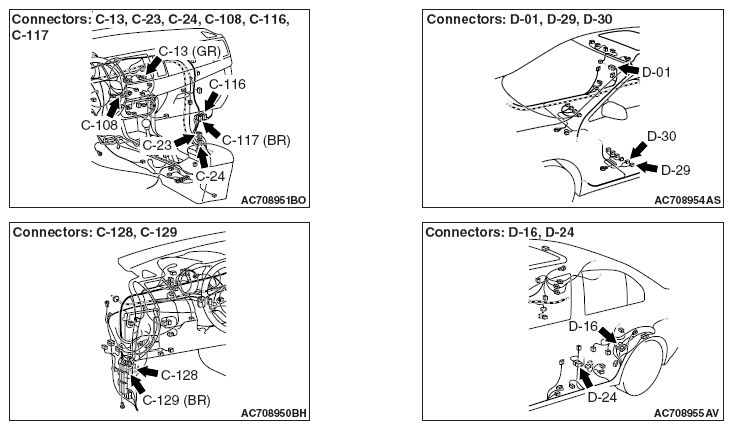

Fig 3: Locating Speaker System Connectors (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

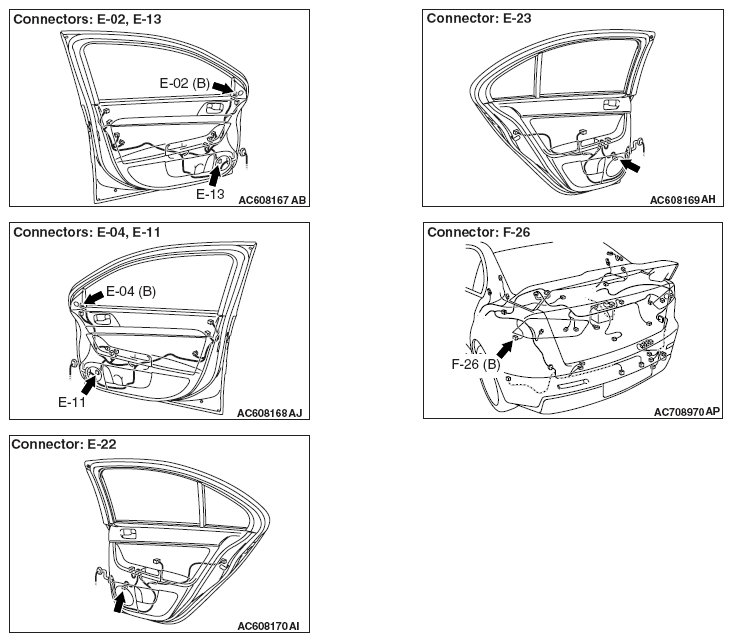

Fig 4: Locating Speaker System Connectors (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
