INSPECTION PROCEDURE 3: Windshield Wipers Do Not Stop At The Specified Park Position: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

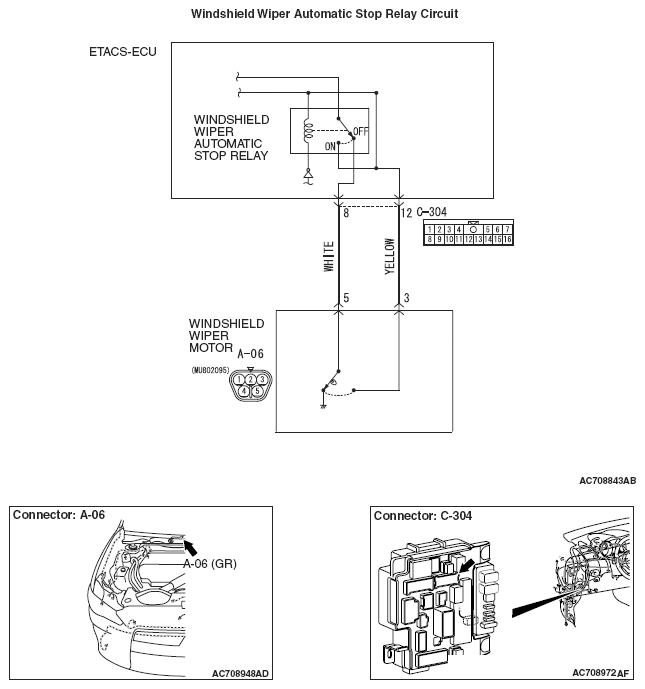

Fig 1: Windshield Wiper Automatic Stop Relay Circuit Diagram
G05395990Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
