Code No. L0630: S/R Power Supply: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing the ECU, ensure that the input and output signal circuits are normal.

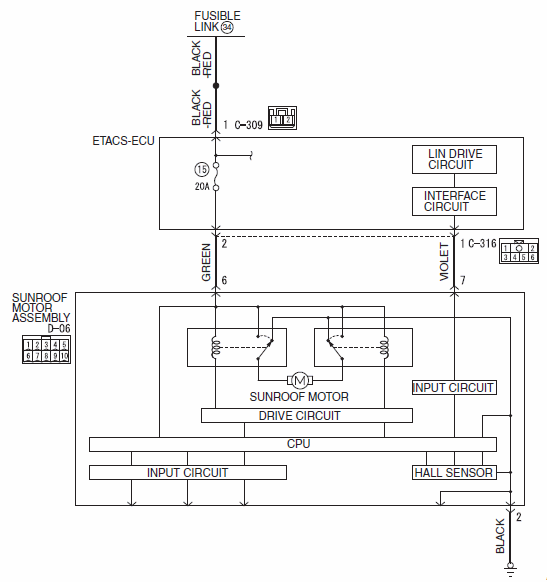

Fig 1: Sunroof Motor Assembly Power Supply Circuit
G00527038Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Locating Connectors C-309 & C-316
G00527039Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Locating Connector D-06
G00527040Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
