System Block Diagram

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

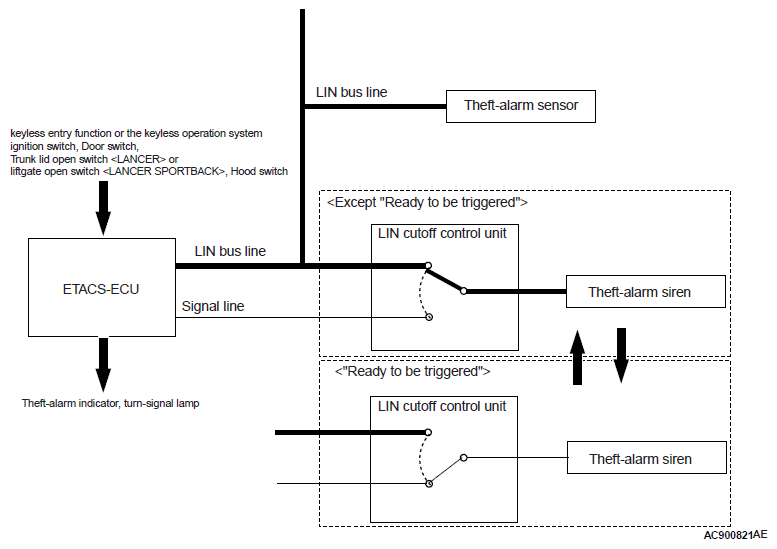

Fig 1: Theft Alarm System Block Diagram
G07035226Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
