Inspection Procedure 4: Horn (HIGH Or LOW) Does Not Sound While The Theft-Alarm System Is Triggered: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.
Fig 1: Horn Circuit Diagram
G00527703Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

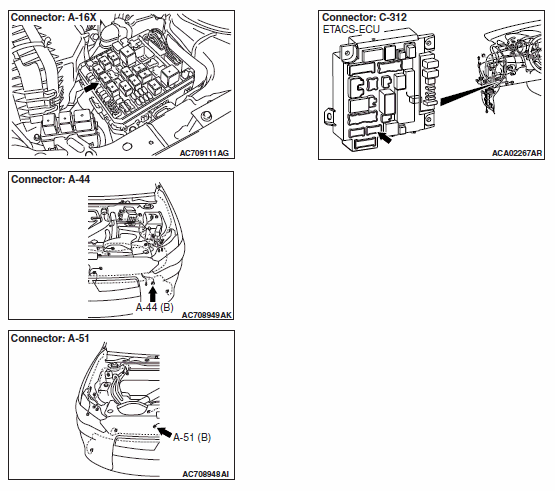

Fig 2: Locating Horn Circuit Connectors
G00527704Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
