Inspection Procedure 1: The Theft-Alarm Is Not Armed (The Theft-Alarm Indicator Does Not Illuminate): Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.
Fig 1: Theft-Alarm Indicator Circuit Diagram
G00527699Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

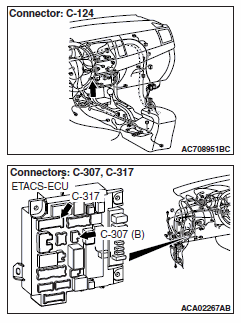

Fig 2: Locating Connectors C-124, C-307 & C-317
G00527700Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
