Removal And Installation

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

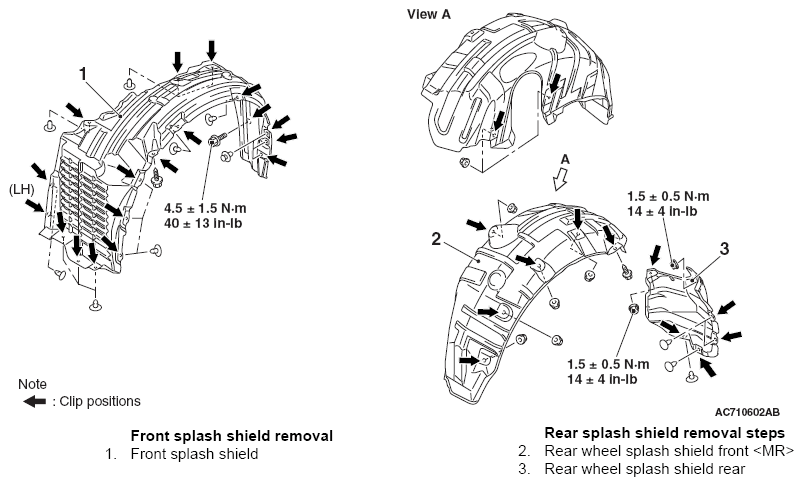

Fig 1: Removing/Installing Front & Rear Splash Shield With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
