Removal And Installation: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

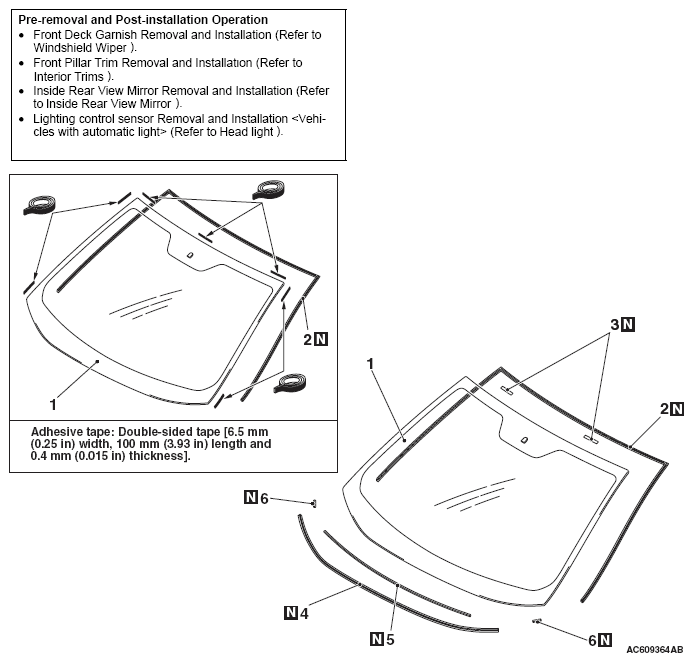

Fig 1: Applying Windshield Tape
G05394844Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

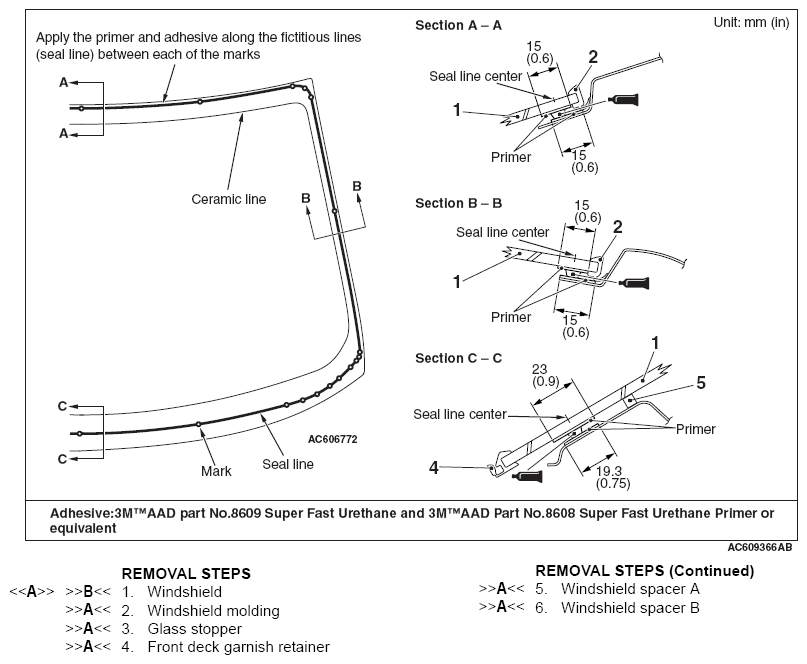

Fig 2: Applying Primer To Windshield
G06677820Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
