>>A<< Windshield Spacer/Glass Stopper/Windshield Upper Molding/Windshield Side Molding Installation

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Leave the degreased parts for 3 or more minutes to dry well, before starting on the next step. Do not touch the degreased parts.

Use 3M™ AAD Part number 8906 or equivalent to degrease the inside and outside of the windshield and the body flanges.

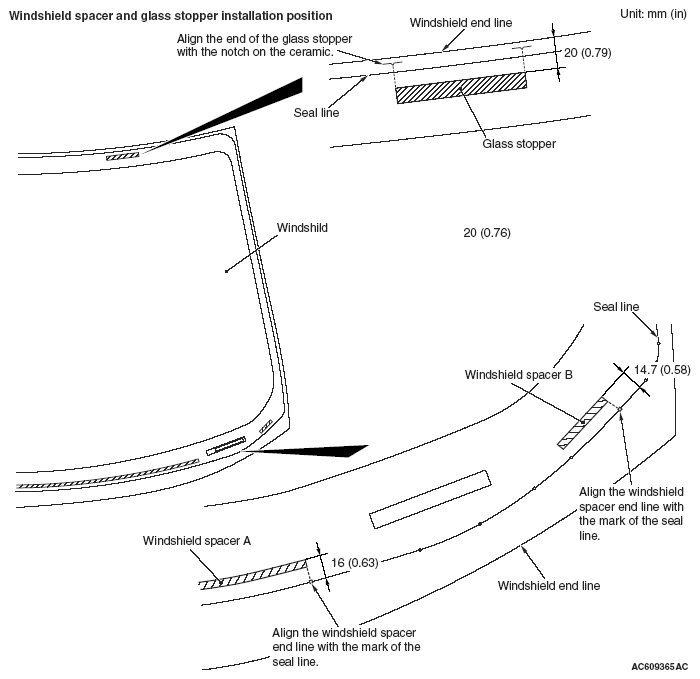

Fig 1: Installation Of Windshield Spacer & Glass Stopper
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the windshield spacer and glass stoppers to the specified positions so that there are no adrift or warped surfaces inside the windshield.

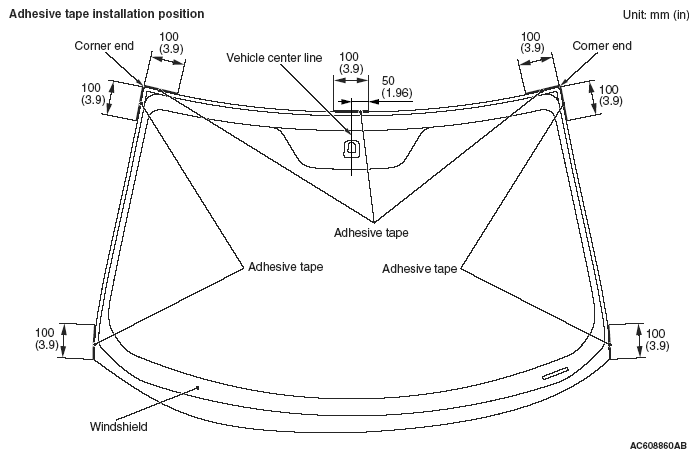

Fig 2: Installation Of Adhesive Tape To Windshield
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the adhesive tape to the windshield.
Install the windshield molding and front deck garnish retainer to the windshield.
