Fuel Pump Module

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For installation and removal, refer to FUEL PUMP MODULE REPLACEMENT IN ON-VEHICLE SERVICE  .

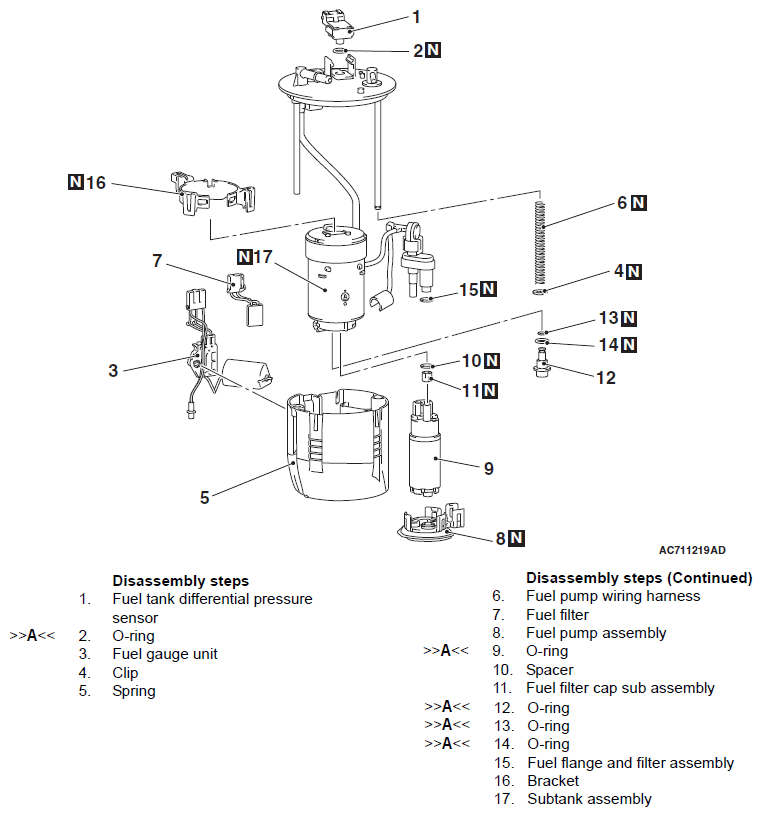

Fig 1: Exploded View Of Fuel Pump Module
G06676690Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
