>>C<< Clutch Switch Installation

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

Install the clutch switch according to the dimension shown in the illustration.

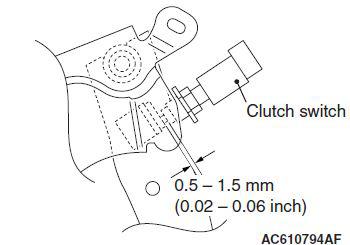

Fig 1: Clutch Switch Dimensions
G05375559Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
