Inspection Procedure 1: Ignition Key Cylinder Illumination Light Does Not Illuminate/Extinguish Normally - Vehicles With WCM: Notes

WARNING: This page is about a different car, the 2012 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Whenever the ECU is replaced, ensure that the input and output signal circuits are normal.

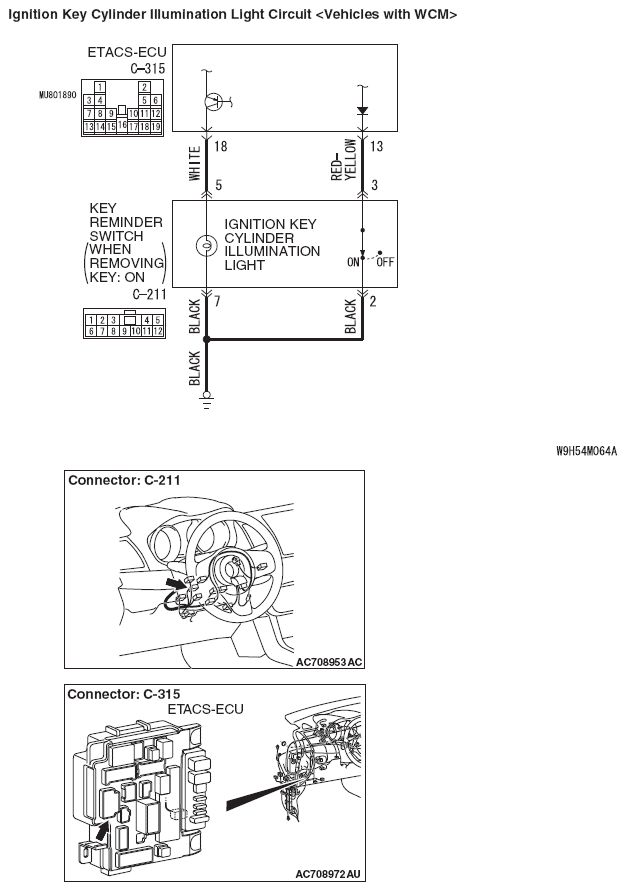

Fig 1: Ignition Key Cylinder Illumination Light Circuit Diagram
G06678021Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
