<< C >> Driver's Air Bag Module Connector Removal

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

Slide the outer housing of the driver's air bag module connector in the arrow direction shown, and disconnect the connector.

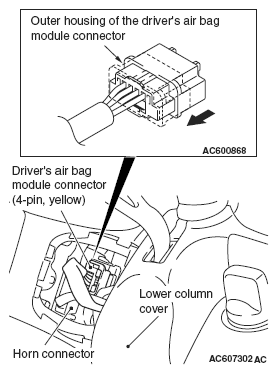

Fig 1: Identifying Outer Housing Of Driver's Air Bag Module Connector
G05396580Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
