Driver's Air Bag Module And Clock Spring

WARNING: This page is about a different car, the 2008 Mitsubishi Lancer. However, it is still accessible from the selected car via links, so may be relevant.

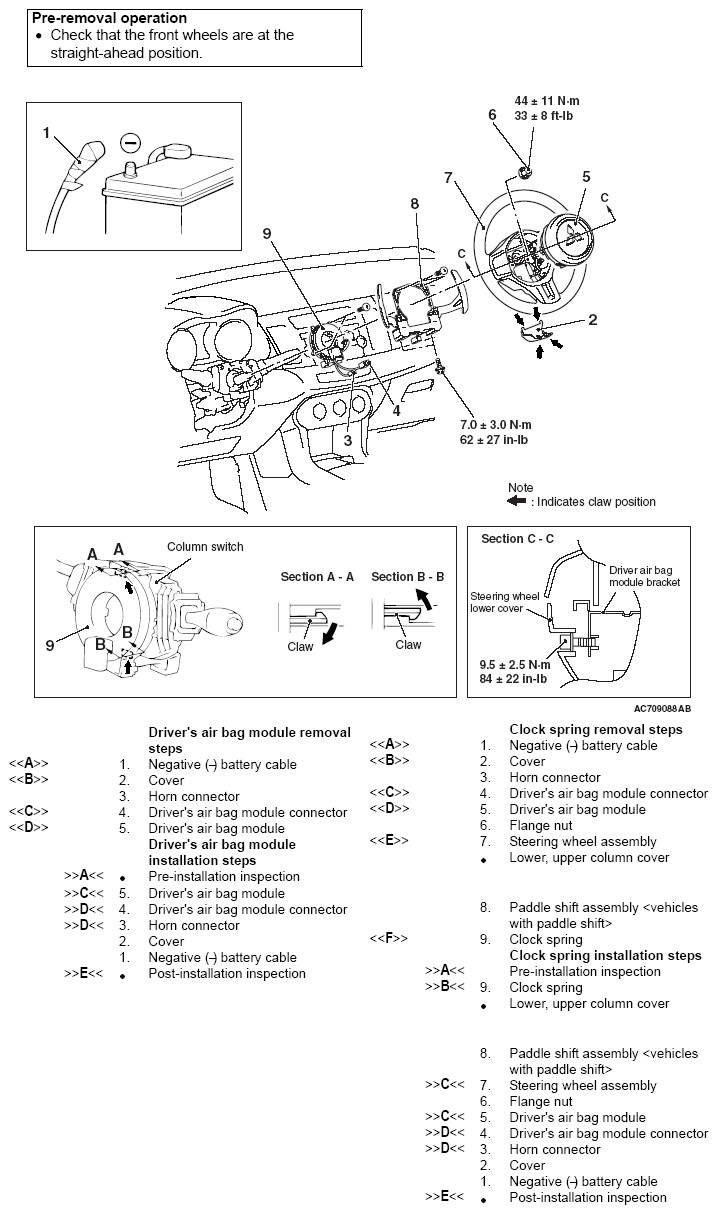

Fig 1: Driver's Air Bag Module And Clock Spring Replacement Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990803: Steering Wheel Puller
MB991958 Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V. C. I).
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A
MB992006: Extra Fine Probe
